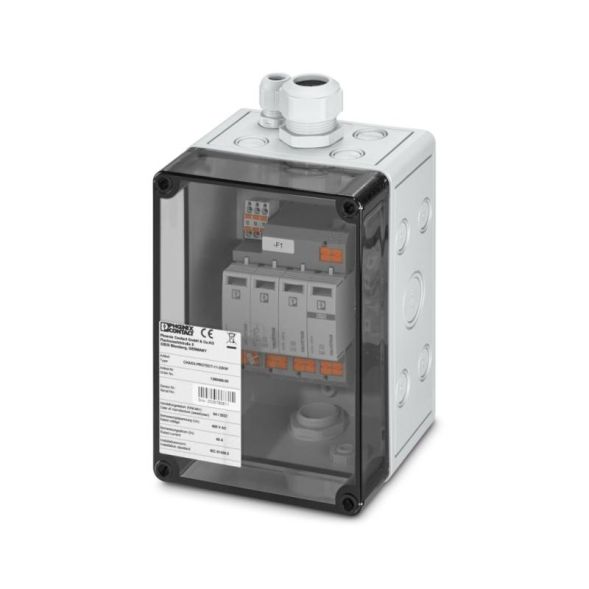

Surge protection set for protecting charging stations with an output of 11 to 22 kW, e.g. wall boxes. Surge arrester consisting of a base element with push-in connection technology, remote signaling contact and protective plugs. Nominal voltage: 230 V AC, 3+1 circuit
| Property | Value |
| Protection level: | 1.5 kV |
| Nominal discharge current (8/20): | 20 kA |
| Highest continuous voltage AC: | 275 V |
| Protection level LN: | 1.35 kV |
| Signaling on the device: | optical |
| With remote signaling contact: | yes |
| Test class type 2: | yes |
| Max. conductor cross-section rigid (single/multi-wire): | 10 mm² |
| Protection level N-PE: | 1.5 kV |
| Protection class (IP): | other |
Features
Max. conductor cross-section rigid (single/multi-wire)
10 mm²
Protection level
1.5 kV
With remote signaling contact
Yes
Test class type 2
Yes
Protection level L-N
1.35 kV
Protection level N-PE
1.5 kV
HAB
CHARX-PROTECT-11-22KW
Manufacturer
HAN
1380466
GTIN
4063151751746
Highest continuous voltage AC
275V
Nominal discharge current (8/20)
20kA
IP protection)
Other
Signaling on the device
Optical
