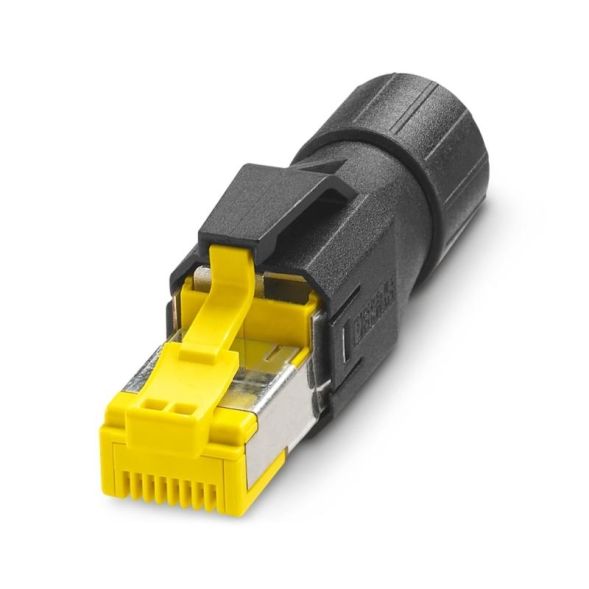

RJ45 connector, design: RJ45, protection class: IP20, number of positions: 8, 10 GBit/s, CAT6A (IEC 60512-27-100:2008, TIA-568-C.2:2009), material: PA 6.6, connection type: IDC quick connection, connection cross-section: AWG 26- 24, cable outlet: straight, color: yellow, Ethernet
| Property | Value |
| Material of the contact: | other |
| Material of the contact coating: | other |
| Rated voltage: | 72 V |
| With protective conductor: | no |
| Width: | 13.8 mm |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 0.13 to 0.21 mm² |
| Height: | 17.3 mm |
| Degree of pollution: | 2 |
| Operating temperature: | -40 to 70 °C |
| Ambient temperature: | 70 °C |
| Connectable conductor cross-section, stranded: | 0.13 to 0.21 mm² |
| Flammability class of the insulating material according to UL 94: | V2 |
| Material of the housing: | other |
| Depth: | 55.6 mm |
| Number of poles: | 8 |
| Housing coating: | other |
| EMC version: | no |
| Number of Cable entries: | 1 |
| With seal: | no |
| Cable feed arrangement: | other |
Features
HAB
VS-08-RJ45-10G/Q Cat.6A 8-pin
Manufacturer
HAN
1419001
GTIN
4046356521567
Connectable conductor cross-section stranded
0.13 to 0.21 mm²
Number of cable entries
1
Rated voltage
72V
Housing coating
Other
Operating temperatur
-40 to 70 °C
Width
13.8 mm
Flammability class of the insulating material according to UL 94
V2
EMC version
No
Height
17.3 mm
Number of poles
8
Depth
55.6 mm
Ambient temperature
70°C
Degree of contamination
2
Housing material
Other
