Safe use in the field thanks to high protection classes. Flexible: connectors for on-site assembly. Screw connection: proven connection technology for a large selection of different conductors.
| Property | Value |
| Overvoltage category: | II |
| Connectable conductor cross-section, single-wire: | 0.75 mm² |
| Rated current In: | 4 A |
| Ambient temperature: | 85 °C |
| With protective conductor: | no |
| Design of the electrical connection: | Screw connection |
| Degree of pollution: | 3 |
| Type of locking: | other |
| Rated voltage: | 48 V |
| Flammability class of the insulating material according to UL 94: | V0 |
| Material of the contact coating: | gold |
| Housing design: | straight |
| Contact design: | socket |
| Number of control contacts: | 5 |
| For cable outer diameter: | 5.5 to 8.6 mm |
| Housing coating: | other |
| Material of threaded ring: | other |
| Min. number of mating cycles: | 100 |
| Shielded: | yes |
| With status display: | no |
Features
Shielded
Yes
HAB

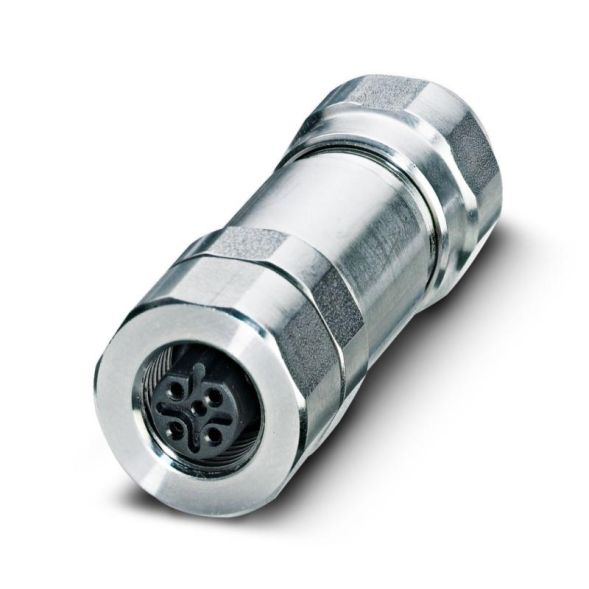

SACC-M12FSB-5CON-DM 5-8 SH VA
Manufacturer
HAN
1440135
GTIN
4046356483339
Connectable conductor cross-section solid
0.75 mm²
Design of the electrical connection
Screw connection
Rated voltage
48V
Rated current In
4 A
Housing coating
Other
Flammability class of the insulating material according to UL 94
V0
With status display
No
Ambient temperature
85°C
Degree of contamination
3
Overvoltage category
II
