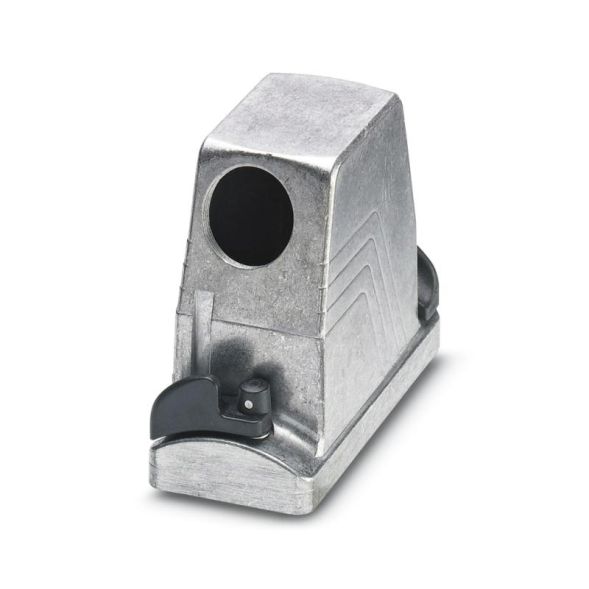

HEAVYCON ADVANCE sleeve housing B16, with bayonet lock (hexagon socket) made of stainless steel, seawater-resistant aluminum, height 100 mm, with thread 1x M32, side cable outlet, without surface conductive seal (EMC properties)
| Property | Value |
| Width: | 57 mm |
| Height: | 100 mm |
| Housing design: | other |
| Protection class (IP), mounted: | IP66 |
| Operating temperature: | -40 to 125 °C |
| Cable feed arrangement: | side |
| Locking type: | bayonet |
| With hinged lid: | no |
| EMC version: | yes |
| With cable gland: | no |
| UV-resistant: | no |
| Housing material: | aluminum |
| Flammability class of the insulating material according to UL 94: | other |
| Housing coating: | uncoated |
| Bracket position: | without |
| Depth: | 126 mm |
| Housing colour: | other |
| Cable gland fastening type: | metric |
| With nozzle: | no |
| With seal: | no |
| Number of cable entries: | 1 |
Features
HAB
HC-B 16-TMB-100/O1STM32S-EEE
Minimal order
10 pcs
Manufacturer
HAN
1460370
GTIN
4046356592697
Number of cable entries
1
Housing coating
Uncoated
Operating temperatur
-40 to 125 °C
Width
57 mm
Flammability class of the insulating material according to UL 94
Other
EMC version
Yes
Housing color
Other
Height
100 mm
With hinged lid
No
Depth
126 mm
UV-resistant
No
Housing material
Aluminum
