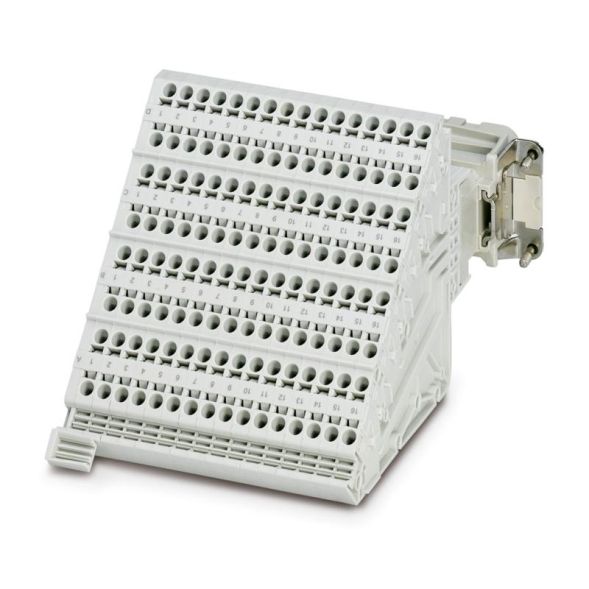

Terminal adapter, number of poles: 64+PE, size: B24, design: socket for the right side of the control cabinet, socket, push-in connection, 250 V, 10 A, 0.5 mm² ... 2.5 mm²
| Property | Value |
| Number of poles: | 64 |
| Rated impulse voltage: | 4 kV |
| With protective conductor: | yes |
| Connectable conductor cross-section, stranded: | 0.5 to 2.5 mm² |
| Material of the Connector insert: | other |
| Rated voltage: | 250 V |
| Overvoltage category: | III |
| Ambient temperature: | 125 °C |
| Contact design: | socket |
| Contact material: | other |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 0.5 to 2.5 mm² |
| Contact coating material: | other |
| With wire protection: | no |
| Flammability class of the insulating material according to UL 94: | V0 |
| Operating temperature: | -40 to 125 °C |
| Width: | 34 mm |
| Height: | 141.1 mm |
| Depth: | 110 mm |
Features
Rated surge voltage
4 kV
HAB
HC-D 64-A-TWIN-PER-F
Manufacturer
HAN
1580202
GTIN
4046356154536
Connectable conductor cross-section stranded
0.5 to 2.5 mm²
Rated voltage
250V
Operating temperatur
-40 to 125 °C
Width
34 mm
Flammability class of the insulating material according to UL 94
V0
Height
141.1 mm
Number of poles
64
Depth
110 mm
Ambient temperature
125°C
Overvoltage category
III
