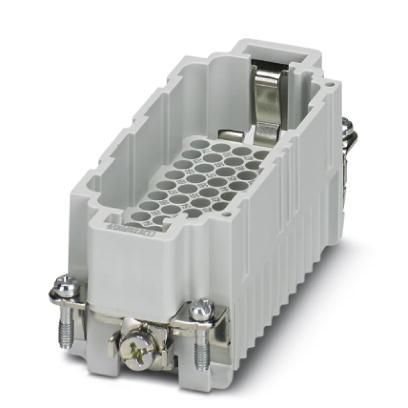

Contact insert, number of poles: 42+PE, size: B10, number of connections per pole: 1, socket, crimp connection, 250 V, 10 A, 0.14 mm² ... 2.5 mm², application: signal
| Property | Value |
| Number of poles: | 42 |
| Rated current In: | 10 A |
| Rated impulse voltage: | 4 kV |
| With protective conductor: | yes |
| Connectable conductor cross-section, stranded: | 0.14 to 2.5 mm² |
| Material of the connector insert: | Thermoplastic |
| Rated voltage: | 250 V |
| Overvoltage category: | III |
| Ambient temperature: | 125 °C |
| Contact design: | Socket |
| Diameter of the plug contact: | 1.6 mm |
| Degree of pollution: | 3 |
| Material of the contact: | other copper alloys |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 0.14 to 2.5 mm² |
| Contact insert without contacts: | yes |
| Material of the contact coating: | other |
| Design of the electrical connection: | crimp connection |
| With wire protection: | no |
| Flammability class of the insulating material according to UL 94: | V0 |
| Material of the contact insert: | Thermoplastic |
| Number of power contacts: | 42 |
| Operating temperature: | -40 to 125 °C |
| Min. number of mating cycles: | 500 |
| Width: | 34 mm |
| Height: | 34.5 mm |
| Depth: | 64 mm |
Features
Rated surge voltage
4 kV
HAB
HC-DD42-I-CT-F
Manufacturer
HAN
1584062
GTIN
4046356133371
Connectable conductor cross-section stranded
0.14 to 2.5 mm²
Design of the electrical connection
Crimp connection
Rated voltage
250V
Rated current In
10A
Operating temperatur
-40 to 125 °C
Width
34 mm
Flammability class of the insulating material according to UL 94
V0
Height
34.5 mm
Number of poles
42
Depth
64 mm
Ambient temperature
125°C
Degree of contamination
3
Overvoltage category
III
