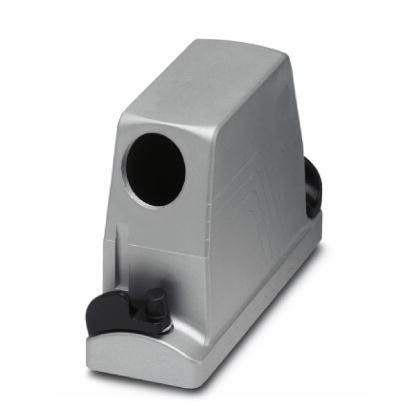

Grommet housing B24, bayonet locking, material: die-cast aluminum, cable outlets: 1, side, 1x M32, height: 100 mm, cable gland: without, EMC
| Property | Value |
| Width: | 57 mm |
| Height: | 100 mm |
| Housing design: | other |
| Protection class (IP), mounted: | IP65 |
| Operating temperature: | -40 to 125 °C |
| Cable feed arrangement: | side |
| Locking type: | bayonet |
| With hinged lid: | no |
| EMC version: | yes |
| With cable gland: | no |
| UV-resistant: | no |
| Housing material: | Aluminium |
| Flammability class of the insulating material according to UL 94: | other |
| Housing coating: | powder-coated |
| Bracket position: | without |
| Depth: | 152 mm |
| Housing colour: | grey |
| Cable gland fastening type: | metric |
| With nozzle: | no |
| With seal: | yes |
| Number of Cable entries: | 1 |
Features
HAB
HC-B 24-TMB-100/O1STM32S-EMC
Minimal order
10 pcs
Manufacturer
HAN
1604544
GTIN
4017918948221
Number of cable entries
1
Housing coating
Powder coated
Operating temperatur
-40 to 125 °C
Width
57 mm
Flammability class of the insulating material according to UL 94
Other
EMC version
Yes
Housing color
Gray
Height
100 mm
With hinged lid
No
Depth
152 mm
UV-resistant
No
Housing material
Aluminum
