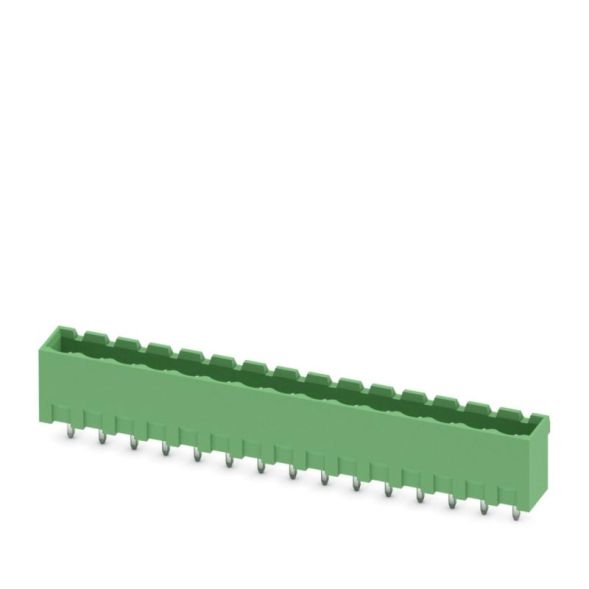

PCB base strip, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: tin, contact type: pin (male), number of potentials: 15, number of rows: 1, number of poles: 15, number of connections: 15, article family: MSTBVA 2.5/..-G, pitch: 5 mm, mounting: wave soldering, pin layout: linear pinning, pin length [P]: 3.9 mm, number of soldering pins per potential: 1, plug-in system: COMBICON MSTB 2.5, connector face alignment: standard, locking: without, fastening type: without, packaging type: packed in a box
| Property | Value |
| Number of plug contact rows: | 1 |
| Type of banding: | Cardboard (for SMD) |
| Type of PCB fastening: | Other |
| Design of electrical connection: | Other |
| Mounting type: | Other |
| Rated voltage: | 320 V |
| Rated impulse voltage: | 4 kV |
| Rated current In: | 12 A |
| Operating temperature: | -40 to 100 °C |
| Flammability class of the insulating material according to UL 94: | V0 |
| Diameter of the connection pin: | 1.4 mm |
| Housing color: | green |
| Contact design: | pin |
| Length of the pin: | 3.9 mm |
| Pitch of the connections: | 5 mm |
| Pitch of the Contacts: | 5 mm |
| Connector design: | fixed connector |
| Overvoltage category: | III |
| Pollution level: | 2 |
| Contact coating material: | tin |
| Insulating body material: | other |
| Angle PCB/contact: | other |
| Connection type: | PCB to cable |
| Number of poles: | 15 |
Features
Rated surge voltage
4 kV
HAB
MSTBVA 2,5/15-G
Minimal order
50 pcs
Manufacturer
HAN
1755639
GTIN
4017918029210
Design of the electrical connection
Other
Mounting type
Other
Rated voltage
320V
Rated current In
12A
Operating temperatur
-40 to 100 °C
Flammability class of the insulating material according to UL 94
V0
Housing color
Green
Number of poles
15
Connection type
PCB to cable
Degree of contamination
2
Overvoltage category
III
