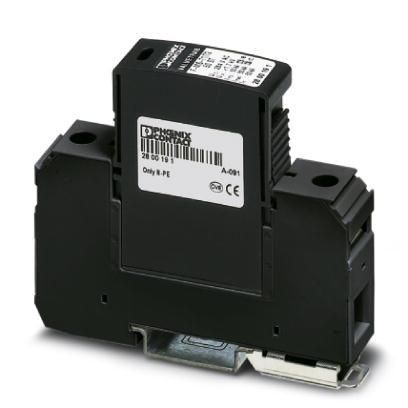

Lightning current / surge arrester, consisting of base element and protective plug with N-PE total current spark gap, for mounting on NS 35/7, 5. Housing width: 17.5 mm (1TE)
| Property | Value |
| Lightning impulse current (10/350 µs): | 50 kA |
| Nominal discharge current (8/20): | 12.5 kA |
| Highest continuous voltage AC: | 264 V |
| Nominal voltage AC: | 240 V |
| Protection level: | 1.7 kV |
| Follow current extinguishing capacity: | 0.1 kA |
| Mounting type: | other |
| Size: | other |
| With remote signaling contact: | no |
| Blowing out: | no |
| Signaling on the device: | optical |
| Test class type 1: | yes |
| Max. conductor cross-section rigid (single/multi-wire): | 35 mm² |
| Max. conductor cross-section flexible (fine-stranded): | 25 mm² |
Features
Max. conductor cross-section rigid (single/multi-wire)
35 mm²
Max. conductor cross-section flexible (fine-stranded)
25 mm²
Lightning surge current (10/350 µs)
50 kA
Protection level
1.7 kV
With remote signaling contact
No
HAB
F-MS-T1/T2 50
Manufacturer
HAN
2801136
GTIN
4046356701952
Size
Other
Highest continuous voltage AC
264V
Mounting type
Other
Nominal discharge current (8/20)
12.5kA
Nominal voltage AC
240V
Signaling on the device
Optical
