Mechanical coding of all slots. Disconnection device on each individual plug. Optical, mechanical status display of the individual arresters. Consistently pluggable surge arresters type 2. Multi-channel type 2 arresters.
| Property | Value |
| Protection level: | 1.5 kV |
| Nominal discharge current (8/20): | 20 kA |
| Maximum continuous voltage AC: | 335 V |
| Protection level LN: | 1.5 kV |
| Mounting type: | other |
| Size: | 2 TE |
| Signaling on the device: | optical |
| With remote signaling contact: | yes |
| Test class type 2: | yes |
| Max. conductor cross-section rigid (single/multi-wire): | 35 mm² |
| Protection level N-PE: | 1.8 kV |
| Protection class (IP): | other |
Features
Max. conductor cross-section rigid (single/multi-wire)
35 mm²
Protection level
1.5 kV
With remote signaling contact
Yes
Test class type 2
Yes
Protection level L-N
1.5 kV
Protection level N-PE
1.8 kV
HAB

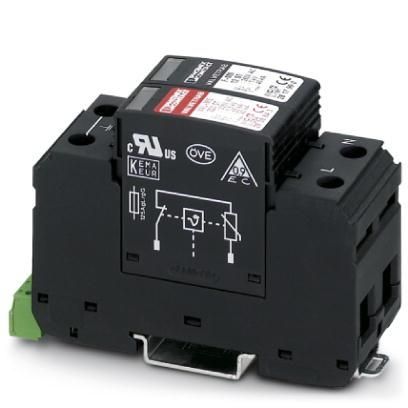

VAL-MS 320/1+1-FM
Manufacturer
HAN
2804393
GTIN
4046356317795
Size
2 HP
Highest continuous voltage AC
335V
Mounting type
Other
Nominal discharge current (8/20)
20kA
IP protection)
Other
Signaling on the device
Optical
