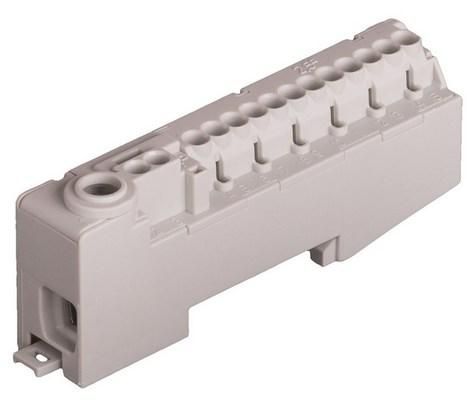

Plug-in branch terminal, terminal in accordance with EN 60998/0613 with 15 terminal points: - 12 plug-in terminals max. 2.5 mm² rigid or 1.5 mm² flexible with wire end ferrule, - 2 plug-in terminals max. 4 mm² rigid or 2.5 mm² flexible with wire end ferrule, - 1 screw box terminal up to 25 mm² rigid or 16 mm² flexible. Installation: - Snap-on installation on DIN rails, - Circuit breaker dimensions with a depth of less than 30 mm, - Installation behind the terminal cover possible, terminals finger-safe in accordance with VBG4 / BGV A2
| Property | Value |
| Number of poles: | 1 |
| Safe to touch: | yes |
| Total number of connections: | 15 |
| Width: | 17.3 mm |
| Height: | 34.5 mm |
| Depth: | 89.3 mm |
| Connection type: | screws |
| Mounting type: | DIN rail |
| Number of connections < 6 mm²: | 14 |
| Number of connections 25 mm²: | 1 |
Features
HAB
A14-S grey pluggable
Manufacturer
HAN
2020253
GTIN
4025221083119
Connection type
Screw
Width
17.3 mm
Height
34.5 mm
Mounting type
DIN rail
Number of poles
1
Depth
89.3 mm
