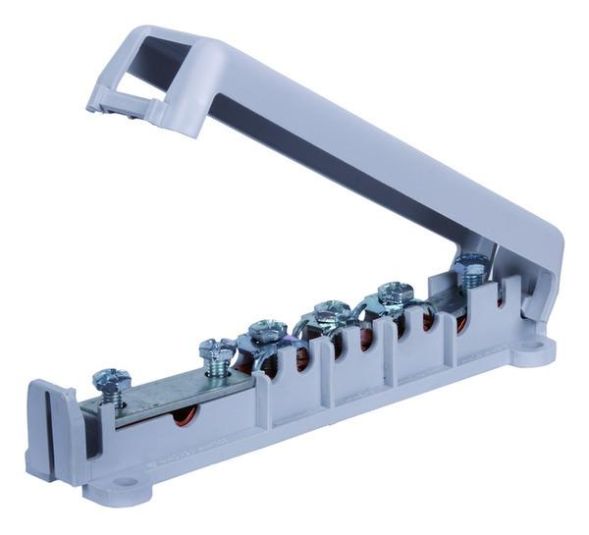

Equipotential bonding rail, (German patent no. 196 46 653, European patent applied for), test mark: Design in accordance with 0100, part 540, and 0618, part 1, connections: strip 30 x 4 mm or round conductor 8-10 mm, one round conductor 50 mm2 and one round conductor max. 6 mm2, 6 round conductors 6-25 mm2, material: high-impact PP, material: halogen-free, application: indoors, special feature: contact points open when delivered, cover can be swiveled on both sides
| Property | Value |
| Length: | 184.5 mm |
| Width: | 44 mm |
| Height: | 38.5 mm |
| Design: | Fixed structure |
| Version: | with cover |
| Material of the contact rail: | Steel |
| Surface of the contact rail: | galvanized/electrolytically galvanized |
| Number of connections for round conductors 8-10 mm: | 1 |
| Number of connections for flat conductors up to 30 mm: | 1 |
| Number of connections for cables up to 25 mm² rigid: | 6 |
Features
HAB
Pot 25/V
Manufacturer
HAN
2020305
GTIN
4025221120043
Version
With cover
Design
Structure fixed
Width
44 mm
Height
38.5 mm
Length
184.5 mm
