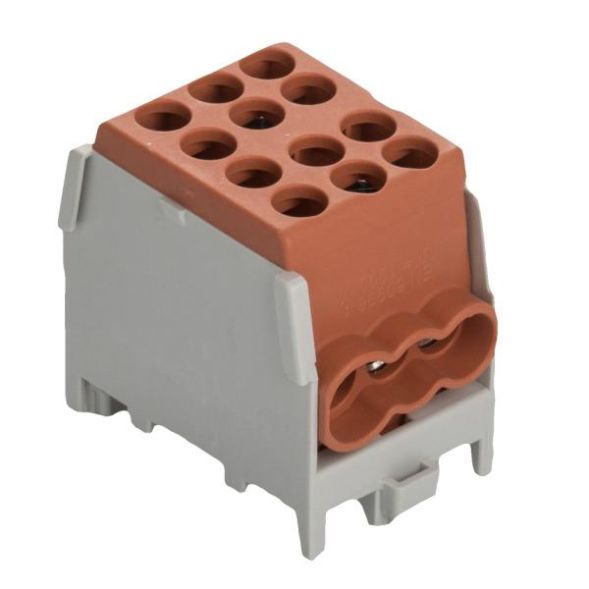

1 x brown, main line branch terminals 1/4 M2, mini-modular, can be arranged in series, mounted on a 35 mm mounting rail in accordance with EN 60715, color coding according to valid wire colors, Ui = 1000 V, certified, tin-plated terminal block. Suitable for aluminum conductors. The small size means that less space is required in the distribution. 35/25 mm2 outlets can now be realized where conventionally only 25/16 mm2 were possible. The mini-modular arrangement leads to a previously unknown variability. The color-coded terminals can be combined as required and then removed again with a tool. PV suitability: Cable entries with insulating collars enable the terminal to be used up to 1000 V nominal voltage in accordance with 0613 / EN 60998. The terminals are finger-safe on all sides even without a connected conductor. For use with fine-stranded conductors, the terminal depth is adapted to the usual lengths of wire end ferrules (HLAK 35. - 25 mm, HLAK 25. - 16 mm). The new terminals are VDE-approved in accordance with 0603-2 for meter locations and distributions.
| Property | Value |
| Number of poles: | 1 |
| Touch safe: | yes |
| Total number of connections: | 4 |
| Width: | 27.3 mm |
| Height: | 43.9 mm |
| Depth: | 40.2 mm |
| Connection type: | screws |
| Mounting type: | DIN rail |
| Number of connections 16 mm²: | 2 |
| Number of connections 25 mm²: | 2 |
