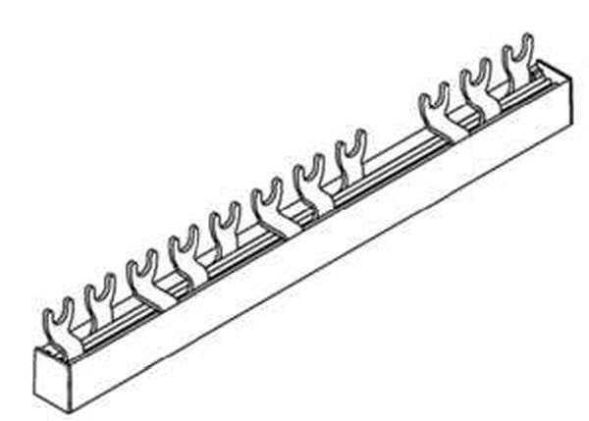

Multi-Flexible-Connect 3-phase for 4-pole FI + 8 LS Can be sawed! Connection screw: M 6 Insulation material: PC/ABS blend
| Property | Value |
| Number of phases: | 3.00 |
| Length: | 210.00 mm |
| Cross-section: | 16.00 mm² |
| Rated continuous current Iu: | 130.00 A |
| Max. Rated operating voltage Ue: | 500.00 V |
| Insulated: | yes |
| Suitable for number of devices: | 9.00 |
| Suitable for devices with N conductor: | no |
| Pitch: | 17.80 mm |
| Suitable for devices with auxiliary switch: | no |
| Conditional rated short-circuit current Iq: | 50.00 kA |
| Design of the electrical connection: | Fork |
| Rated impulse voltage: | 4.00 kV |
Features
Suitable for devices with auxiliary switch
No
Suitable for devices with N conductor
No
Suitable for number of devices
9.00
Pitch dimension
17.80 mm
Rated surge voltage
4.00 kV
HAB
G-3L-FI4/8-210/16MFC FI 4-pin+8HP (12HP)
Manufacturer
HAN
2219312
GTIN
4025221037341
Number of phases
3.00
Design of the electrical connection
Fork
Conditional rated short-circuit current Iq
50.00 kA
Rated continuous current Iu
130.00 A
Isolated
Yes
Length
210.00 mm
Max. rated operating voltage Ue
500.00V
Cross-section
16.00 mm²
