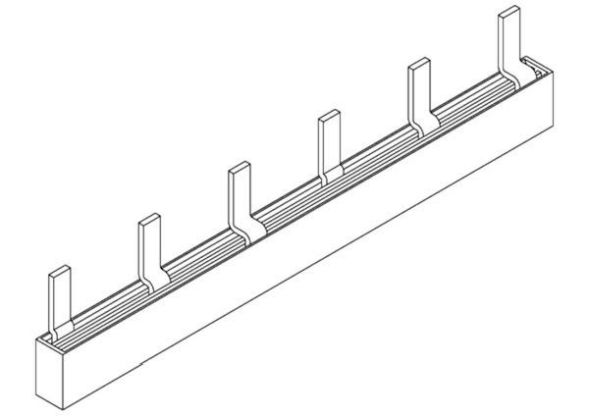

Mini-Line system, 10 mm2, Must not be sawn!, Insulation material: PA 6.6 GV 25, 3-phase for LS
| Property | Value |
| Number of phases: | 3 |
| Length: | 149 mm |
| Cross-section: | 16 mm² |
| Rated continuous current Iu: | 100 A |
| Max. Rated operating voltage Ue: | 500 V |
| Insulated: | yes |
| Suitable for number of devices: | 6 |
| Suitable for devices with N conductor: | no |
| Pitch: | 27 mm |
| Suitable for devices with auxiliary switch: | yes |
| Conditional rated short-circuit current Iq: | 50 kA |
| Design of the electrical connection: | Pin |
| Rated impulse voltage: | 4 kV |
Features
Suitable for devices with auxiliary switch
Yes
Suitable for devices with N conductor
No
Suitable for number of devices
6
Pitch dimension
27 mm
Rated surge voltage
4 kV
HAB
S-3L-27/6-160 ML 6TE 3-pin 10qmm
Manufacturer
HAN
2227302
GTIN
4025221022613
Number of phases
3
Design of the electrical connection
Pen
Conditional rated short-circuit current Iq
50kA
Rated continuous current Iu
100A
Isolated
Yes
Length
149 mm
Max. rated operating voltage Ue
500V
Cross-section
16 mm²
