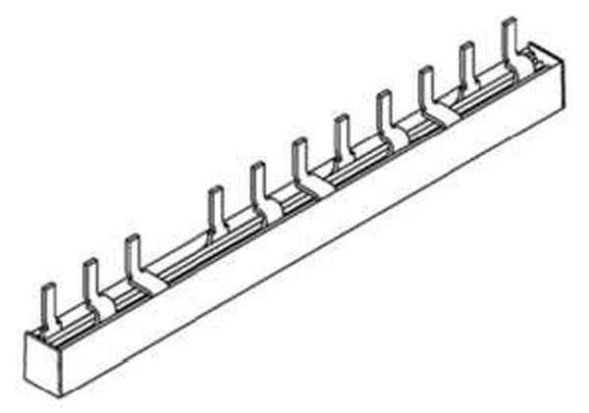

Multi-Flexible-Connect 3-phase for 4-pole FI + 5LS Pin width 4x15 Insulation material: PC/ABS blend Can be sawn.
| Property | Value |
| Number of phases: | 3.00 |
| Length: | 160.00 mm |
| Cross-section: | 16.00 mm² |
| Rated continuous current Iu: | 130.00 A |
| Max. Rated operating voltage Ue: | 500.00 V |
| Insulated: | yes |
| Suitable for number of devices: | 6.00 |
| Suitable for devices with N conductor: | no |
| Pitch: | 17.80 mm |
| Suitable for devices with auxiliary switch: | no |
| Conditional rated short-circuit current Iq: | 50.00 kA |
| Design of the electrical connection: | Pin |
| Rated impulse voltage: | 4.00 kV |
Features
Suitable for devices with auxiliary switch
No
Suitable for devices with N conductor
No
Suitable for number of devices
6.00
Pitch dimension
17.80 mm
Rated surge voltage
4.00 kV
HAB
2229314 S-3L-FI4/5-160/16MFC 9TE
Manufacturer
HAN
2229314
GTIN
4025221036368
Number of phases
3.00
Design of the electrical connection
Pen
Conditional rated short-circuit current Iq
50.00 kA
Rated continuous current Iu
130.00 A
Isolated
Yes
Length
160.00 mm
Max. rated operating voltage Ue
500.00V
Cross-section
16.00 mm²
