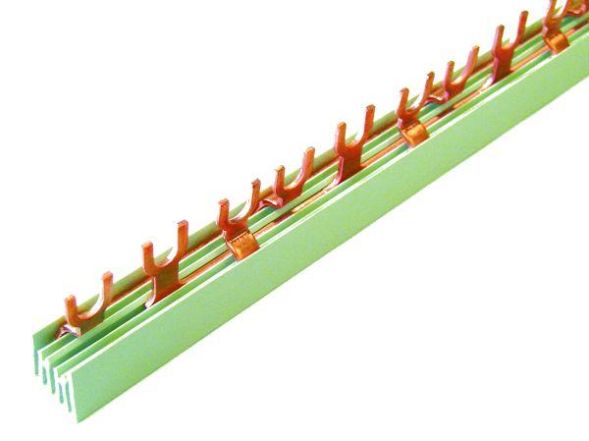

Phase rail, 3-phase, busbar exit in the middle for LS with dual function terminal.
| Property | Value |
| Number of phases: | 3 |
| Length: | 210 mm |
| Cross-section: | 16 mm² |
| Rated continuous current Iu: | 130 A |
| Max. Rated operating voltage Ue: | 500 V |
| Insulated: | yes |
| Suitable for number of devices: | 12 |
| Suitable for devices with N-conductor: | no |
| Pitch: | 17.8 mm |
| Suitable for devices with auxiliary switch: | no |
| Conditional rated short-circuit current Iq: | 50 kA |
| Design of the electrical Connection: | Fork |
| Rated impulse voltage: | 4 kV |
Features
Suitable for devices with auxiliary switch
No
Suitable for devices with N conductor
No
Suitable for number of devices
12
Pitch dimension
17.8 mm
Rated surge voltage
4 kV
HAB
G-3L-210/16 C 3-pin 16qmm
Manufacturer
HAN
2413306
GTIN
4025221011020
Number of phases
3
Design of the electrical connection
Fork
Conditional rated short-circuit current Iq
50kA
Rated continuous current Iu
130A
Isolated
Yes
Length
210 mm
Max. rated operating voltage Ue
500V
Cross-section
16 mm²
