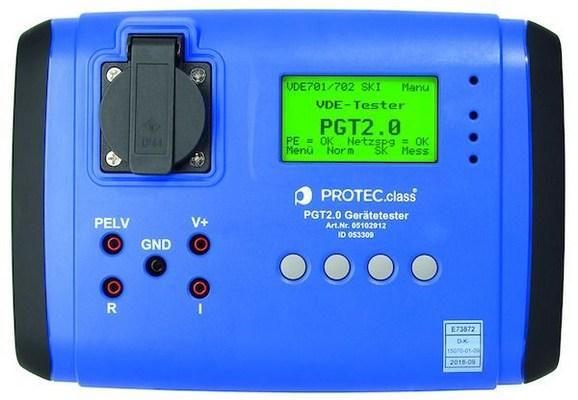

Test device for testing portable devices and systems in accordance with DIN0701/0702 and 0751, data storage for up to 500 test items, including software for standard-compliant documentation of the measurement, semi-automatic test sequence, help screen for each measurement, including test lead set, barcode reader, USB connection cable and ready-to-use case, TÜV/GS tested and approved, complies with IEC/EN 61010-1 (DIN0411), including DKD calibration certificate, protection class: IP40, display: digital, insulation resistance measuring range: 0.1 - 200 MOhm, protective conductor resistance measuring range: 0.1 - 200 Ohm, substitute leakage current, interface, power measurement, consumer current measurement, protective conductor current, touch current, weight: 1.5 kg, dimensions: 263 x 177 x 105 mm
| Property | Value |
| Display: | digital |
| Insulation resistance measuring range: | 0.1 to 200 MOhm |
| Protective conductor resistance measuring range: | 0.1 to 200 Ohm |
| Interface: | yes |
| Power measurement: | yes |
| Consumer current measurement: | yes |
| Protective conductor current: | yes |
| Touch current: | yes |
