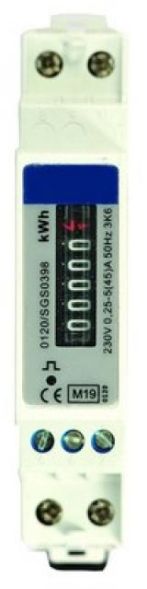

Single-phase, analogue alternating energy meter 1 DIN (TE). Dimensions (LxDxH): 17.5 x 62 x 119 mm. Protection class: IP51. Insulation: Class II. Sealable terminal cover. Direct active energy measurement. MID conformity assessed (calibrated). Display and counting of active energy consumption in single-phase 230 V systems up to a maximum current of 45A. Direct amperometric feed. Dual pulse output S0: Open collector transistor 5-27 VDC. Max. 27 mA DC. Operating voltage: 230V ÷ 0.25-5(45)A ÷ 50Hz. Nominal voltage: 230V AC Accuracy class: Class 1 IEC/EN62053-21, Class B EN50470-1/3. Operating temperature: -25°C to +55°C. Storage temperature: -40°C to +70°C. S0: 1,000 imp/kWh. Max. reading: 99,999.9 kWh
| Property | Value |
| Width in TE: | 1 |
| Calibrated: | yes |
| Pole type: | 1-phase |
| Meter type: | electromechanical |
| Display type: | analog |
| Mounting type: | REG |
| Accuracy class: | B |
| Current (Imax): | 45 A |
| Nominal voltage (Un) NL: | 230 V |
| Pulse rate: | 1000 Imp/kWh (kvarh) |
| Protection class (IP): | IP51 |
| Frequency: | 50 Hz |
| Pulse type: | S0 |
| Nominal voltage (Un) LL: | 230 V |
| Width: | 17.5 mm |
| Depth: | 62 mm |
| Height: | 119 mm |
Features
Accuracy class
B
HAB
PWSZAMID 45 analogue MID
Manufacturer
HAN
05105558
GTIN
4016705155583
Width
17.5 mm
Frequency
50Hz
Height
119 mm
Mounting type
REG
IP protection)
IP51
Depth
62 mm
