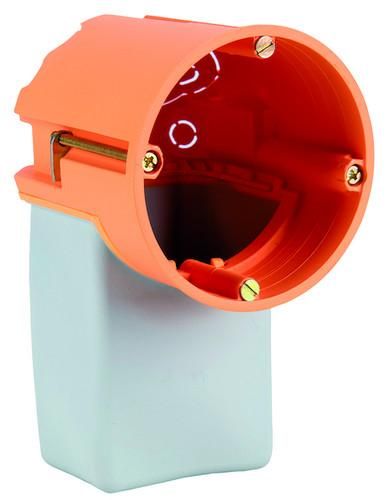

1 hole - installation in a drill hole Ø 68 mm. The flexible tunnel is folded into the box before installation and later folded out in the wall. Pipe entries M 25. 3 entries 3x NYM 1.5 mm². Compliance with the bending radius cable entries for duplex cables. Enables installation of Keystone modules. Enough space for the installation of radio actuators, for example. Combinations with item no. PHSD 6847 and PHSD 6861 in accordance with standards using PVSHD connecting pieces. Floor entries M16/ 20 mm² stepped metric, side entries for cables and pipes from M12- 20. Fastening tabs with cable tie stop. Number of possible entries: - 3 x 3 x 1.5 mm², - 2 x M25 + 4 x data cables. Flame retardancy: 850°C. Rated insulation voltage 400 V AC. Tested according to 0606 Part 1 / DIN IEC 695 Part 2-1.
| Property | Value |
| Material: | Plastic |
| Color: | orange |
| Halogen-free: | yes |
| Protection class (IP): | IP30 |
| Mounting type: | Hollow wall |
| Number of entries: | 3 |
| Suitable for Cable diameter: | 1.5 mm |
