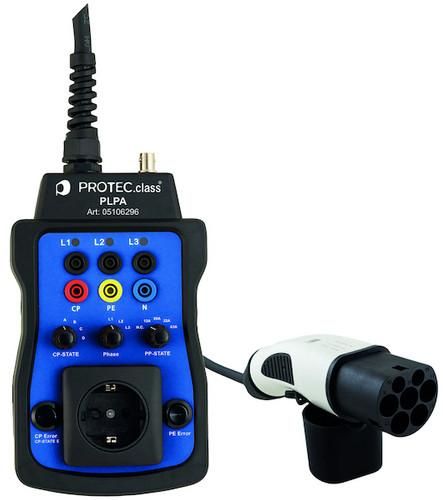

Suitable for wall boxes with and without cables. Measuring adapter to test the type 2 charging stations standardized in Europe. Handles communication with the charging station and simulates an electric vehicle. Installation testers or multimeters can be connected via a 4 mm banana socket. Testing with an installation tester is possible (item no.: 05103468, ID no. 053953). LEDs show whether and how many phases are present. Testing of each individual phase using a built-in protective contact socket (one of the three phases can be switched as required). Connection option for installation testers or multimeters. Direct testing of the phases via LED display. Built-in Schuko socket with phase switching. Input voltage: 230 V / 400 V (1-phase / 3-phase). Proximity Pilot (PP) simulation of the charging cable: NC / 13 A / 20 A / 32 A / 63 A. Control Pilot (CP), simulation of the vehicle state: A (not connected) / B (connected but not charging) / C (charging without ventilation) / D (charging with ventilation). Error simulation CP error E: communication error / PE error (protective conductor interrupted). Ready bag included in delivery.
