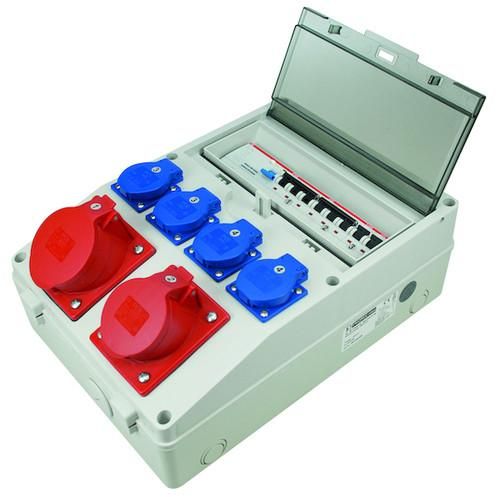

, Robust and impact-resistant housing made of high-quality ABS plastic, Protective switching devices under lockable, impact-resistant polycarbonate cover, Sockets with self-closing hinged lids made of impact-resistant polyamide 6, Equipment (output) hinged lid sockets: 1 x CEE 32 A, 400 V~ / 1 x CEE 16 A, 400 V~ / 4 x socket 230 V~, Fuse (ABB): 1 x LS 32 A, 3-pole C / 1 x LS 16 A, 3-pole, C / 2 x LS 16 A, 1-pole, C (each protects two earthed sockets) [with residual current device 40 A, type A, 400 V~, 4-pole, 0.03 A across all outlets], Input: Can be implemented from above or below via cable gland M32 at the top (Blind screw connection M32 below), Color of the sockets: 4x blue (protective contact hinged lid socket) / 2x red (CEE 16A / 32A hinged lid sockets), individually tested according to DGUV-V3
| Property | Value |
| CEE socket - 16 A: | 1x16A5p400V |
| CEE socket - 32 A: | 1x32A5p400V |
| CEE socket - 63 A: | without |
| CEE socket - 125A: | without |
| SCHUKO sockets: | 4 |
| Width: | 260 mm |
| Height: | 162 mm |
| Depth: | 370 mm |
| Protection: | LS switch |
| FI circuit breaker: | FI with IFN 0.03 A (standard) |
| Handling: | Wall mounting |
| Housing material: | Plastic |
| Protection class (IP): | IP54 |
| Military version: | no |
| Color: | gray |
| Residual current type: | A |
| Cable entry diameter: | M32 |
