, Mast and mast top mounting possible, 76 mm mast adapter included in delivery, Mast adapter for 60 mm / 42 mm masts available as an accessory, Can be pivoted by approx. 20° in both mounting types, Average service life: 50,000 burning hours (L80), Luminaire housing: die-cast aluminum, gray aluminum (RAL9007), 10 kV surge protection, Simple, tool-free maintenance access (cover can be opened at the push of a button), Voltage switch when opening the luminaire, Wide beam - particularly suitable for parking lots or forecourts, Recommended mounting height: 3 - 6 m
| Property | Value | ||
| Length: | 514 mm | ||
| Width: | 250 mm | ||
| Height/depth: | 130 mm | ||
| System power: | 40 W | ||
| Luminous flux: | 4000 lm | ||
| Color temperature: | 3000 K | ||
| Housing color: | anthracite | ||
| With light source: | yes | ||
| Light source: | LED not replaceable | ||
| Socket: | without | ||
| Protection rating (IP): | IP66 | ||
| Protection class: | I | ||
| Impact resistance: | IK08 | ||
| Mounting type: | Top/appendix | ||
| Color rendering index CRI: | 80-89 | ||
| With operating device: | yes | ||
| Adjustable optics: | no | ||
| Cover material: | transparent plastic | ||
| Material of the housing: | Aluminium | ||
| Remote control: | without | ||
| Constant luminous flux control: | yes | ||
| Light color: | white | ||
| With connection cable: | no | ||
| With radio control: | no | ||
| With program-controlled light control: | no | ||
| Surface protection: | powder-coated | ||
| Dimming 0-10 V: | no | ||
| Dimming 1-10 V: | no | ||
| Dimming DALI: | no | ||
| Dimming DMX: | no | tr>Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no | ||
| Dimming LineSwitch: | no | ||
| Dimming manufacturer-specific: | no | ||
| Dimming mains voltage modulation: | no | ||
| Dimming trailing edge: | no | ||
| Dimming leading edge: | no | ||
| Dimming programmable: | no | ||
| Dimming RF: | no | ||
| Dimming Sine Wave Reduction: | no | ||
| Dimming Touch and Dim: | no | ||
| Dimming Zigbee: | no | ||
| Dimming with push button: | no | ||
| Without dimming function: | yes | ||
| Protection class (NEMA): | other | ||
| Light distributor: | other | ||
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no | ||
| Luminaire luminous efficacy: | 100 lm/W | ||
| Type of wiring: | Termination | ||
| Conductor cross-section: | 1.5 mm² | ||
| Connection type: | other | ||
| Replaceable operating device: | no | ||
| Compatible with Apple HomeKit: | no | ||
| Compatible with Google Assistant: | no | ||
| Compatible with Amazon Alexa: | no | ||
| IFTTT support available: | no |
Features
HAB

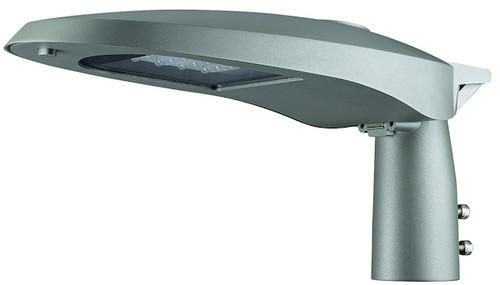

PLEDPL40 WW 40W 3000K
Manufacturer
HAN
05400800
GTIN
4016705408009
Connection type
Other
Type of wiring
Diploma
Replaceable operating device
No
Width
250 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color rendering index CRI
80-89
Version
Without
Remote control
Without
Housing color
Anthracite
Height/Depth
130 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
Yes
Conductor cross-section
1.5 mm²
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Luminaire luminous efficacy
100lm/W
Lamps
LED not replaceable
Light color
White
Luminous flux
4000lm
Light distributor
Other
Length
514 mm
With connection cable
No
With operating device
Yes
With radio control
No
With light source
Yes
With program-controlled lighting control
No
Mounting type
Essay/Approach
Surface protection
Powder coated
Without dimming function
Yes
Impact resistance
IK08
IP protection)
IP66
Protection class (NEMA)
Other
Protection class
I
System performance
40W
Cover material
Plastic transparent
Housing material
Aluminum
