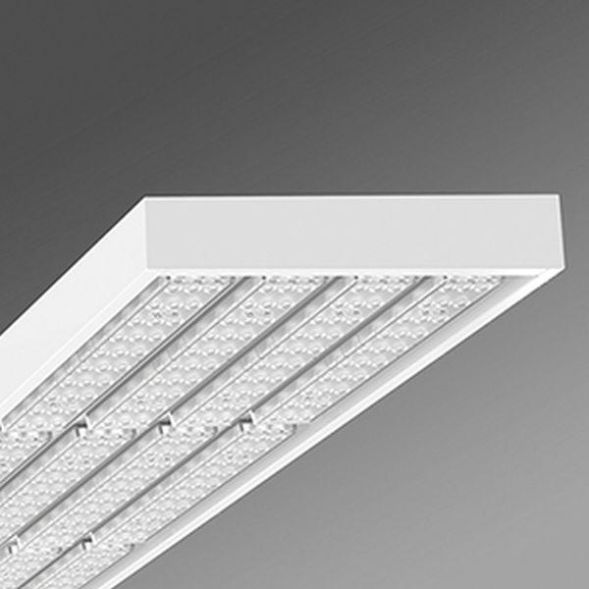

Powder-coated sheet steel housing, rectangular cross-section, with sturdy steel front sides, housing back with integrated pull-in nuts for attaching the accessories for ceiling mounting and chain suspension from the outside. Direct wide beam light distribution using individual lens. Optic made of plastic PMMA. Driver integrated. Electrical connection via 2.3m long connecting cable 5x1.0mm for 2-group switching
| Property | Value |
| Max. System power: | 196 W |
| Rated luminous flux according to IEC 62722-2-1: | 29100 lm |
| Suitable for number of lamps: | 1 |
| Length: | 1338 mm |
| Width: | 340 mm |
| Height/depth: | 59 mm |
| Protection rating (IP): | IP40 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 230 V |
| Housing color: | white |
| Housing material: | steel |
| Color temperature: | 4000 K |
| Impact resistance: | IK03 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Suitable for wall mounting: | no |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | wide beam 41-80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | 25 to 35 °C |
| Socket: | other |
| Connection type: | other |
| With operating device: | yes |
| Material of Cover: | other |
| Light distributor: | Focus lens |
| Without dimming function: | yes |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for Light strip configuration: | no |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming dependent on operating device: | yes |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | without |
| Suitable for lamp power: | 196 W |
| Luminaire luminous efficacy: | 149 lm/W |
| Wiring type: | Termination |
| Number of poles: | 5 |
Features
HAB
SOHB/1300 IP40 29600lm 840
Manufacturer
HAN
37430324110
GTIN
4020863339822
Covering the luminaire with thermal insulation material possible
No
Connection type
Other
Type of wiring
Diploma
Execution of the grid
Without
Beam angle
Wide beam 41-80°
Rated lifetime L80/B10 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
29100lm
Rated ambient temperature according to IEC62722-2-1
25 to 35 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
340 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
4000K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for lamp power
196W
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
Yes
Suitable for wall mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
Without
Height/Depth
59 mm
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
149lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distributor
Focus lens
Light distribution
Symmetrical
Length
1338 mm
Max. system performance
196W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
230V
Without dimming function
Yes
Number of poles
5
Impact resistance
IK03
IP protection)
IP40
Protection class (NEMA)
Other
Protection class
I
Voltage type
AC
Cover material
Other
Housing material
Steel
