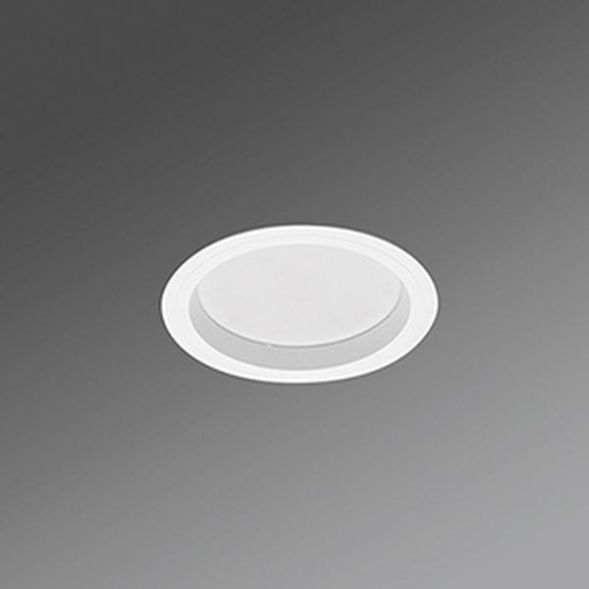

Housing made of die-cast aluminum painted in RAL 9016 traffic white, wired for operation with driver, aluminum heat sink for effective passive cooling and recessed opal diffuser disc to lighten the ceiling appearance. With fastening springs for tool-free installation, suitable for ceiling thicknesses of 10mm-20mm. Direct wide beam light distribution using diffusely radiating, opal diffuser with structured surface. Integrated LED driver wired for operation with light. Electrical connection via 1.0m long connecting cable, 2x0.75mm.
| Property | Value |
| Max. System power: | 21 W |
| Rated luminous flux according to IEC 62722-2-1: | 2000 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP44 |
| Outer diameter: | 190 mm |
| Socket: | other |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 110 mm |
| With control gear: | yes |
| Suitable for recessed mounting: | yes |
| Height/depth: | 59 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 230 V |
| Suitable for lamp power: | 21 W |
| Beam angle: | wide beam 41-80° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Impact resistance: | IK00 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | without |
| Suitable for number of bulbs: | 1 |
| Luminous flux: | 2000 lm |
| Cover material: | Opal plastic |
| Covering the light with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for pedestal/floor mounting: | no |
| Suitable for truss mounting: | no |
| With Light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface: | painted |
| Brushed surface: | no |
| Dimming depending on operating device: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | diffuser lens/optics/panel |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Protection class (NEMA): | other |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Wiring type: | Termination |
| Number of poles: | 2 |
| Connection type: | other |
| Luminaire luminous efficacy: | 93 lm/W |
| Suitable for computer workstations according to EN 12464-1: | no |
| Glow wire test according to IEC 60695-2-11: | without |
| Photobiological safety according to EN 62471: | other |
| Color consistency (McAdam ellipse): | SDCM3 |
Features
HAB
Relo-RDES-O/190 2000lm 830 IP44 SK2 ws
Manufacturer
HAN
37672114140
GTIN
4020863344185
Covering the luminaire with thermal insulation material possible
No
Connection type
Other
Type of wiring
Diploma
Beam angle
Wide beam 41-80°
Outer diameter
190 mm
Rated lifetime L70/B50 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
2000lm
Rated ambient temperature according to IEC62722-2-1
25°C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation height/depth
110 mm
Color consistency (McAdam ellipse)
SDCM3
Color temperature
3000K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for lamp power
21 W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
Without
Height/Depth
59 mm
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
93lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
2000lm
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
Max. system performance
21 W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
230V
Surface
Painted
Brushed surface
No
Without dimming function
Yes
Photobiological safety according to EN 62471
Other
Number of poles
2
Reflector
Without
Impact resistance
IK00
IP protection)
IP44
Protection class (NEMA)
Other
Protection class
II
Voltage type
AC
Adjustability
Not adjustable
Cover material
Plastic opal
Housing material
Aluminum
