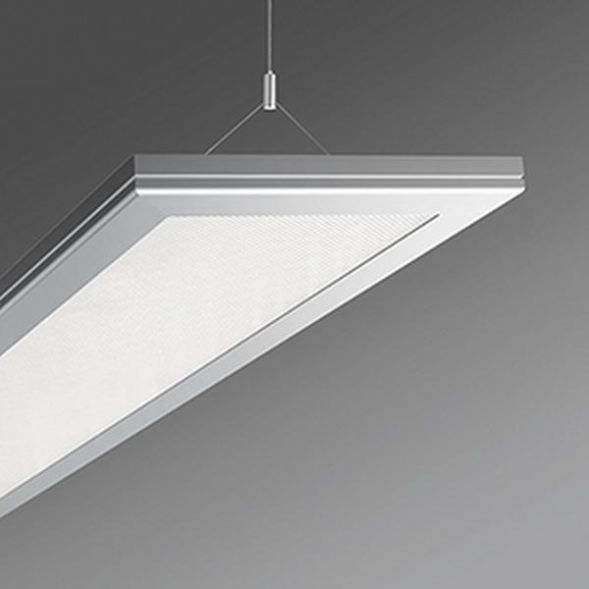

Particularly flat luminaire housing, extruded aluminum profile, naturally anodized, visible height 30mm, front sides and side parts made of naturally anodized aluminum with a continuous longitudinal groove, rounded towards the underside of the luminaire. Direct/indirect light distribution, direct component using a microprism panel made of PMMA, homogeneous light emission through lateral LED light coupling and an aluminum reflector with a highly reflective white coating, with micro-perforations for the indirect light component, for computer workstations, all-round glare protection in accordance with the current standard DIN-EN 12464-1. Integrated LED driver design. Electrical connection via integrated transparent connection cable 3x0.75mm, length 1900mm, cable ends stripped.
| Property | Value |
| Max. System power: | 55 W |
| Rated luminous flux according to IEC 62722-2-1: | 6300 lm |
| Color temperature: | 4000 K |
| Length: | 1480 mm |
| Width: | 330 mm |
| Socket: | without |
| Suitable for number of bulbs: | 1 |
| Height/depth: | 30 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Pendant length: | 150 to 1900 mm |
| Operating device: | LED operating device, current-controlled |
| Material of the housing: | Aluminum |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| With light source: | yes |
| With operating device: | yes |
| Nominal voltage: | 230 V |
| Suspension included: | yes |
| Cover material: | Structured plastic |
| Light source: | LED not replaceable |
| Housing color: | aluminum |
| Design of the grid: | without |
| Reflector: | without |
| Suitable for light strip configuration: | no |
| Direct/indirect components separately adjustable: | no |
| Light distribution: | symmetrical |
| Light emission: | direct/indirect |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Color rendering index CRI: | 80-89 |
| Suitable for emergency lighting: | no |
| Light color: | white |
| Voltage type: | AC |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming programmable: | no |
| Dimming DSI: | no |
| Dimming RF: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Without dimming function: | yes |
| Light distributor: | other |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | without |
| Suitable for lamp power: | 55 W |
| Wiring type: | Termination |
| Number of poles: | 3 |
| Connection type: | other |
Features
HAB
Visula-VSHIMP/1500 6000lm 840
Manufacturer
HAN
43251024175
GTIN
4020863304462
Suspension included
Yes
Connection type
Other
Type of wiring
Diploma
Execution of the grid
Without
Rated lifetime L80/B10 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
6300lm
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
Yes
Width
330 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Direct/indirect components can be controlled separately
No
Color temperature
4000K
Color rendering index CRI
80-89
Version
Without
Suitable for lamp power
55W
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Housing color
Aluminum
Glow wire test according to IEC 60695-2-11
Without
Height/Depth
30 mm
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light emission
Direct/indirect
Light color
White
Light distributor
Other
Light distribution
Symmetrical
Length
1480 mm
Max. system performance
55W
With operating device
Yes
With light source
Yes
Nominal voltage
230V
Without dimming function
Yes
Pendulum length
150 to 1900 mm
Number of poles
3
Reflector
Without
Impact resistance
IK03
IP protection)
IP20
Protection class (NEMA)
Other
Protection class
I
Voltage type
AC
Cover material
Plastic structured
Housing material
Aluminum
