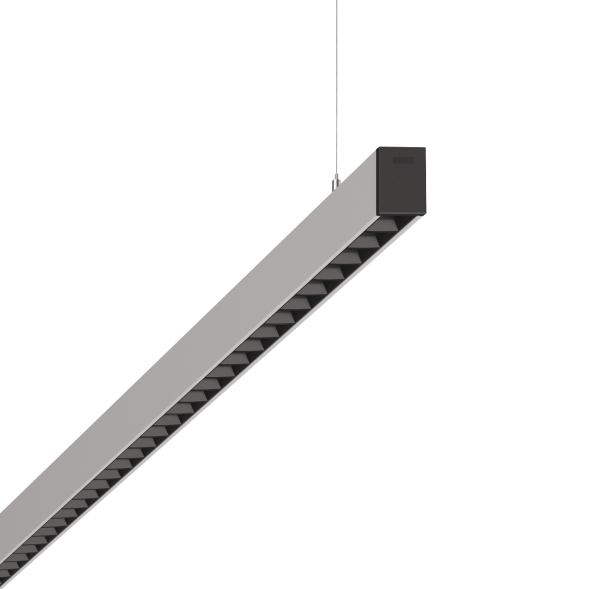

Housing made of sheet steel in a graceful rectangular design, front sides made of black die-cast aluminum, direct/indirect light distribution, direct component using 80° clear LED lens with black micro single grid, homogeneous indirect component with opal PMMA panel, for computer workstations, all-round glare protection in accordance with the current DIN-EN 12464-1 standard. Netlife master light for wireless dimming and control with built-in Bluetooth controller, without sensor, up to 1 operating device can be controlled, configuration and operation via Casambi app, electrical connection via integrated transparent connection cable 5x0.75mm, length 1900mm, wired ready for connection.
| Property | Value |
| Max. System power: | 35 W |
| Rated luminous flux according to IEC 62722-2-1: | 4900 lm |
| Color temperature: | 4000 K |
| Length: | 1411 mm |
| Width: | 51 mm |
| Socket: | without |
| Suitable for number of bulbs: | 1 |
| Height/depth: | 69 mm |
| Protection class (IP): | IP20 |
| Protection class: | I |
| Pendant length: | 150 to 1900 mm |
| Operating device: | LED operating device, current-controlled |
| Material of the housing: | steel |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| With light source: | yes |
| With operating device: | yes |
| Nominal voltage: | 230 V |
| Suspension included: | no |
| Material of the cover: | without cover |
| Light source: | LED not replaceable |
| Housing color: | gray |
| Design of the grid: | other |
| Reflector: | without |
| Suitable for light strip configuration: | yes |
| Direct/indirect components separately adjustable: | no |
| Light distribution: | symmetrical |
| Light emission: | direct/indirect |
| Impact resistance: | IK02 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Color rendering index CRI: | 80-89 |
| Suitable for emergency lighting: | no |
| Light color: | white |
| Voltage type: | AC |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming programmable: | yes |
| Dimming DSI: | no |
| Dimming RF: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | yes |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Without dimming function: | no |
| Light distributor: | other |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | without |
| Suitable for Lamp power: | 35 W |
| Wiring type: | Termination |
| Number of poles: | 5 |
| Conductor cross-section: | 0.75 mm² |
| Connection type: | other |
Features
HAB
Agila-AGHIR/1500 4900 840 DALI flex10 sg
Manufacturer
HAN
60615041675
GTIN
4020863422104
Suspension included
No
Connection type
Other
Type of wiring
Diploma
Execution of the grid
Other
Rated lifetime L80/B10 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
4900lm
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
Yes
Width
51 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
Yes
Dimming with push button
No
Dimming programmable
Yes
Direct/indirect components can be controlled separately
No
Color temperature
4000K
Color rendering index CRI
80-89
Version
Without
Suitable for lamp power
35W
Suitable for number of lamps
1
Suitable for light strip configuration
Yes
Suitable for emergency lighting
No
Housing color
Gray
Glow wire test according to IEC 60695-2-11
Without
Height/Depth
69 mm
Conductor cross-section
0.75 mm²
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light emission
Direct/indirect
Light color
White
Light distributor
Other
Light distribution
Symmetrical
Length
1411 mm
Max. system performance
35W
With operating device
Yes
With light source
Yes
Nominal voltage
230V
Without dimming function
No
Pendulum length
150 to 1900 mm
Number of poles
5
Reflector
Without
Impact resistance
IK02
IP protection)
IP20
Protection class (NEMA)
Other
Protection class
I
Voltage type
AC
Cover material
Without cover
Housing material
Steel
