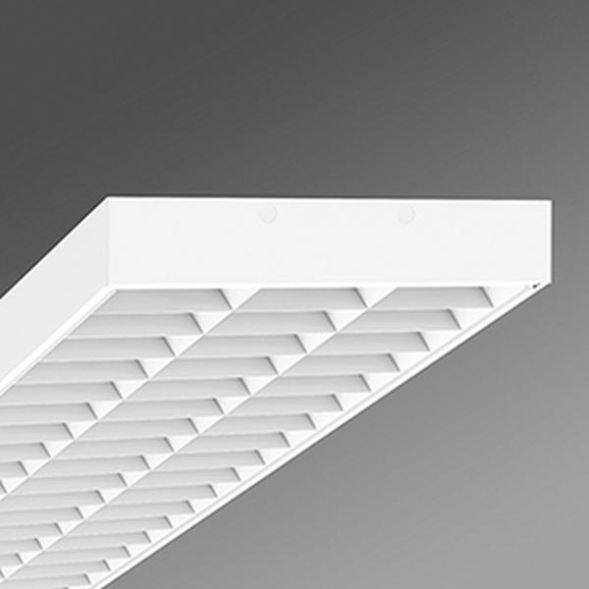

Sheet steel housing, direct wide beam light distribution using metal louvre, sheet steel, with stable, smooth cross louvres, painted white similar to RAL 9016, with V-reflector, foldable on one side, ball-proof. Louvre fastening via spring-loaded, ball-proof locks that can only be opened with tools, equipped with 1x Regiolux LED unit, light color neutral white (840) with very good color consistency and high color rendering Ra>80, electrical connection via 5-pin connection terminal with plug-in contact technology. LED units can be dimmed individually or as a group.
| Property | Value |
| Max. System power: | 114 W |
| Rated luminous flux according to IEC 62722-2-1: | 14600 lm |
| Suitable for number of lamps: | 1 |
| Length: | 1548 mm |
| Width: | 484 mm |
| Height/depth: | 90 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 230 V |
| Housing color: | white |
| Housing material: | steel |
| Color temperature: | 4000 K |
| Impact resistance: | IK03 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Suitable for wall mounting: | no |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | wide beam 41-80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Cover material: | without Cover |
| Light distributor: | other |
| Without dimming function: | no |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | yes |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | white |
| Covering of the luminaire with thermal insulation material possible: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Potentiometer dimming (device-integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | yes |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | yes |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on operating device: | yes |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | without |
| Suitable for lamp power: | 114 W |
| Luminaire luminous efficacy: | 128 lm/W |
| Wiring type: | suitable for through wiring |
| Number of poles: | 5 |
Features
HAB
THLA/1500-3 14600lm 840 DALI
Manufacturer
HAN
68130036600
GTIN
4020863281459
Covering the luminaire with thermal insulation material possible
No
Connection type
Plug-in terminal
Type of wiring
Suitable for through wiring
Execution of the grid
White
Beam angle
Wide beam 41-80°
Rated lifetime L80/B10 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
14600lm
Rated ambient temperature according to IEC62722-2-1
25°C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
484 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
Yes
Color temperature
4000K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for lamp power
114W
Suitable for number of lamps
1
Suitable for light strip configuration
Yes
Suitable for emergency lighting
No
Suitable for pendulum suspension
Yes
Suitable for wall mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
Without
Height/Depth
90 mm
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
128lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distributor
Other
Light distribution
Symmetrical
Length
1548 mm
Max. system performance
114W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
230V
Without dimming function
No
Number of poles
5
Impact resistance
IK03
IP protection)
IP20
Protection class (NEMA)
Other
Protection class
I
Voltage type
AC
Cover material
Without cover
Housing material
Steel
