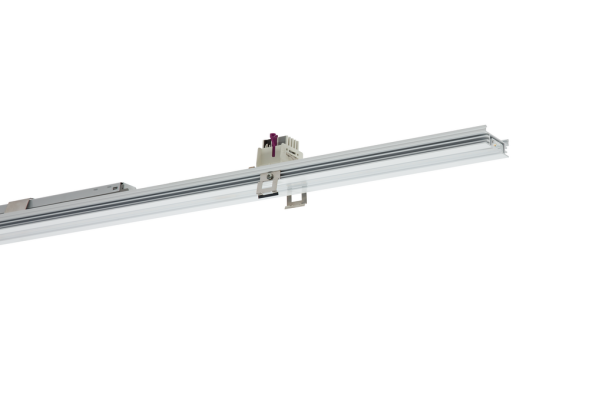

VENICE-GF... device carrier for direct light for installation in VENICE profile. Set back from the support profile edge for mounting VENICE-ZAO or -ZMPS covers. Made of extruded aluminum, white powder-coated similar to RAL9016 with RIDI LED modules with longitudinal optics made of extruded, UV-resistant PMMA, wide-beam light distribution for homogeneous illumination of the cover. RIDI LED linear modules equipped with mid-power LEDs for maximum efficiency. SELV-compliant LED modules pressed onto the entire surface of the aluminum profile for optimal heat dissipation. The device carriers can be mounted anywhere in the support profile using spring clips. Electrical adapter for flexible tapping of the power supply in the support profile. Phase selection via sliding contact. Mechanical coding to prevent incorrect installation (twisting protection). The LED modules are equipped with LEDs up to the device carrier ends, which means that no shadows are visible during continuous installation. The luminance of the different lengths is almost identical, which means that the lengths can be mixed with each other when the lights are arranged in a strip. Linear optics with wide beam light distribution made of clear, UV-resistant PMMA, flush-mounted in the device carrier. Installation: Tool-free using a spring clip in the aluminum profile, independent contact with the protective conductor.
| Property | Value |
| Suitable for number of lamps: | 1 |
| Rated luminous flux according to IEC 62722-2-1: | 3510 lm |
| Color temperature: | 3000 K |
| With lamp: | yes |
| Operating device: | LED operating device, current-controlled |
| Length: | 1183 mm |
| Width: | 58 mm |
| Height/Depth: | 78 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Light distribution: | symmetrical |
| Light emission: | direct |
| Suitable for emergency lighting: | no |
| Housing material: | aluminum |
| Housing color: | white |
| Color rendering index CRI: | 80-89 |
| With operating device: | yes |
| Reflector: | without |
| Nominal voltage: | 220 to 240 V |
| Light source: | LED not replaceable |
| Light color: | white |
| Voltage type: | AC |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no|
| Dimming manufacturer-specific: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Suitable for lamp power: | 22 W |
| Max. system power: | 25 W |
