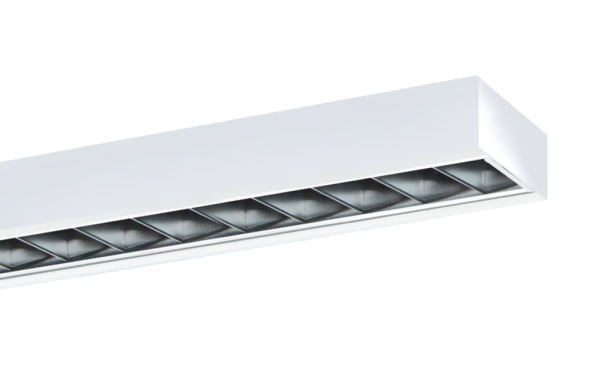

Surface-mounted luminaire for ceiling or pendant mounting, suitable for strip mounting, direct beam. Sturdy luminaire housing made of sheet steel with a particularly scratch-resistant, white (similar to RAL9016) powder coating. Welded-in functional end parts with patented quick connection for strip mounting. Optically continuous louvres for strip mounting. Louvres can be folded down on both sides and are independently included in the electrical protective measures. For RIDI-TUBE lamps (to be ordered separately). Parabolic mirror louvre SM made of highly reflective, satin-matt anodized pure aluminum with a silver coating. For RIDI-TUBE lamps. Installation: individual or strip mounting. Ceiling mounting with the included accessories or pendant mounting with the appropriate fastening sets (see accessories).
| Property | Value |
| Max. System power: | 64 W |
| Rated luminous flux according to IEC 62722-2-1: | 7497 lm |
| Suitable for number of lamps: | 2 |
| Length: | 1480 mm |
| Width: | 131 mm |
| Height/depth: | 60 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | steel |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | no |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | no |
| Light source: | LED replaceable |
| Socket: | other |
| With operating device: | yes |
| Without dimming function: | no |
| Light output: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | yes |
| Suitable for pendulum suspension: | yes |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | yes |
| Grid design: | matt |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Potentiometer dimming (integrated in device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | >no|
| DALI dimming: | yes |
| Mains voltage modulation dimming: | no |
| Phase edge dimming: | no |
| Dimming Phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming dependent on operating device: | yes |
| Suitable for lamp power: | 35 W |
| Luminaire luminous efficacy: | 117 lm/W |
