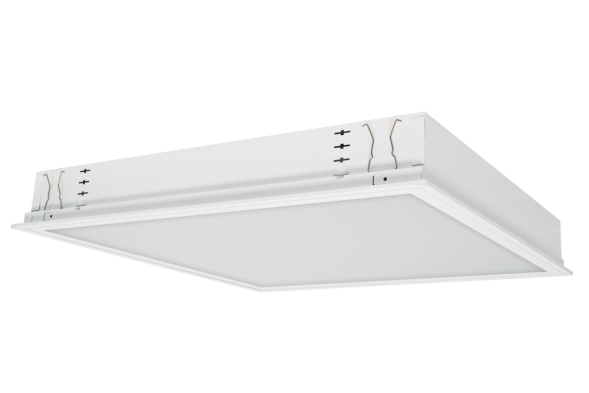

LED recessed light, single light for ceiling installation, for ceiling module 625. Sturdy light housing made of sheet steel, white (similar to RAL9016). Light guide held in the light housing with spring clips, foldable on both sides and automatically connected to the protective conductor. LED modules designed as surface boards. Mid-power LEDs for uniform illumination and maximum efficiency. LED driver built into the light housing. Operation of the LED modules with protective extra-low voltage less than 60 volts (SELV-compliant). Protection class on the room side similar to IP40 and on the ceiling side IP20. OS frame made of extruded aluminum profile with inserted opal artificial glass pane made of UV-resistant PMMA. Pane made of high-quality material, frosted on both sides, with a high transmission rate of 72%. Homogeneous illumination without visible LED points. Installation: Installation in various ceiling systems with the appropriate fastening kit, or insertion in ceiling systems with visible support rails and inserted ceiling panels. No additional fastening accessories are required for lay-in installation.
| Property | Value |
| Max. System power: | 32 W |
| Rated luminous flux according to IEC 62722-2-1: | 4196 lm |
| Suitable for number of lamps: | 2 |
| Length: | 622 mm |
| Width: | 622 mm |
| Height/depth: | 90 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | steel |
| Color temperature: | 4000 K |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 100000 h |
| Suitable for wall mounting: | no |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | yes |
| Light source: | LED not replaceable |
| With operating device: | yes |
| Cover material: | Plastic opal |
| Without dimming function: | yes |
| Installation width: | 604 mm |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed installation: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | yes |
| Installation length: | 604 mm |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | yes |
| Suitable for lamp power: | 14 W |
| Luminaire luminous efficacy: | 131 lm/W |
