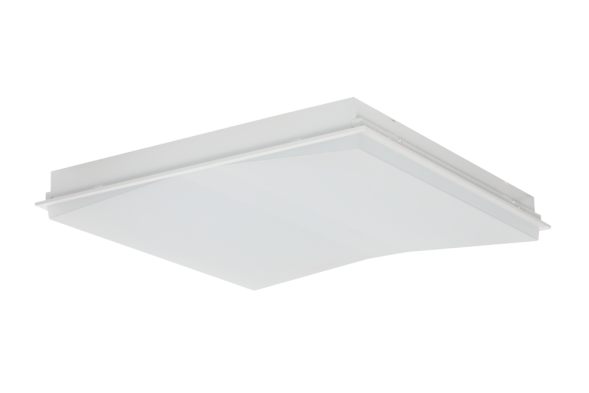

LED recessed light for ceiling module 625 with RIDI LED modules. Sturdy light housing made of sheet steel, white powder-coated, color similar to RAL9016. Trough without frame clipped into the light housing without tools. RIDI LED modules designed as a surface board. Mid-power LEDs for even illumination and maximum efficiency. Total luminous flux of the LED modules 5200 lm. LED driver built into the light housing. Operation of the LED modules in protective extra-low voltage less than 60 volts (SELV-compliant). Protection class IP40 on the room side and IP20 on the ceiling side. Trough, direct and slightly indirect beam with ceiling illumination, made entirely of opal satin UV-stabilized polycarbonate (PC), translucent. Installation: Installation in various ceiling systems with appropriate fastening kit (accessory) or insertion in ceiling systems with visible support rails and inserted ceiling panels. No additional fastening accessories are required for lay-in installation.
| Property | Value |
| Max. System power: | 32 W |
| Rated luminous flux according to IEC 62722-2-1: | 4540 lm |
| Suitable for number of lamps: | 2 |
| Length: | 622 mm |
| Width: | 622 mm |
| Height/depth: | 84 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | plastic |
| Color temperature: | 4000 K |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | no |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | yes |
| Light source: | LED not replaceable |
| With operating device: | yes |
| Cover material: | Opal plastic |
| Without dimming function: | yes |
| Installation width: | 604 mm |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | yes |
| Installation length: | 614 mm |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | yes |
| Suitable for lamp power: | 14 W |
| Luminous efficacy: | 141 lm/W |
