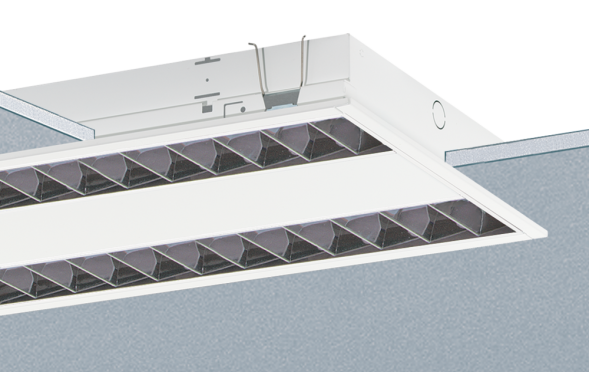

LED recessed luminaire, single luminaire for ceiling installation, for ceiling module 600. Luminaire height 60 mm (1-lamp 71 mm). Housing made of sheet steel, with 5 mm low edge, coated white (similar to RAL9016). Light guide held in the luminaire housing with spring clips, foldable on both sides and automatically connected to the protective conductor. Protection class IP20. For RIDI-TUBE lamps (to be ordered separately). Parabolic mirror louvre SM made of highly reflective, satin matt anodized pure aluminum with silver coating. For RIDI-TUBE lamps. Installation: Simple lay-in installation in ceilings with visible T-profiles and installation in sawn ceiling openings with the appropriate fastening set.
| Property | Value |
| Max. System power: | 68 W |
| Rated luminous flux according to IEC 62722-2-1: | 8145 lm |
| Suitable for number of lamps: | 2 |
| Length: | 1197 mm |
| Width: | 297 mm |
| Height/depth: | 60 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | steel |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | no |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | no |
| Light source: | LED replaceable |
| Socket: | other |
| With operating device: | yes |
| Cover material: | without cover |
| Without dimming function: | yes |
| Installation width: | 279 mm |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | yes |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | yes |
| Installation length: | 1179 mm |
| Design of the grid: | matt |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | yes |
| Suitable for lamp power: | 30 W |
| Luminous efficacy: | 119 lm/W |
Features
HAB
EBRME6-R2X115/30ND-SM
Manufacturer
HAN
0850054
GTIN
4029299423945
Execution of the grid
Frosted
Rated luminous flux according to IEC 62722-2-1
8145lm
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
297 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation width
279 mm
Installation length
1179 mm
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for lamp power
30W
Suitable for number of lamps
2
Suitable for light strip configuration
No
Suitable for emergency lighting
Yes
Suitable for pendulum suspension
No
Suitable for wall mounting
No
Housing color
White
Height/Depth
60 mm
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
119lm/W
Lamps
LED replaceable
Light emission
Direct
Light distribution
Symmetrical
Length
1197 mm
Max. system performance
68W
With operating device
Yes
With motion detector
No
With light source
No
With light sensor
No
With air slots
No
Nominal voltage
220 to 240 V
Without dimming function
Yes
IP protection)
IP20
Protection class
I
Voltage type
AC
Cover material
Without cover
Housing material
Steel
