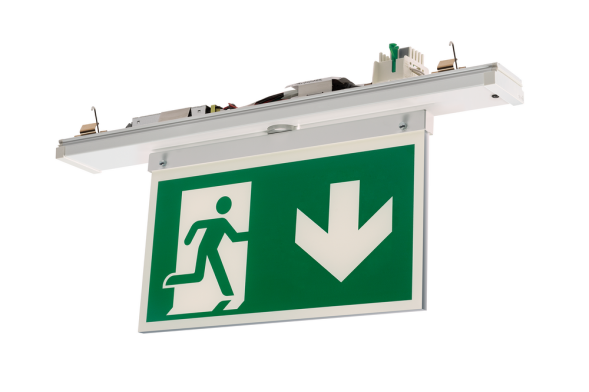

Escape sign module insert LED for mounting in VLTM mounting rail. Additional module VLMF ... made of extruded aluminum profile, white, silver (-SI) or black (-SW) powder-coated. Spring steel clamps for fastening to the mounting rail. The VLMF ... modules can be placed between the VLGF... device carriers. Electrical adapter for flexible tapping of the power supply in the mounting rail. Color and optical coding for easy installation. Mechanical coding to prevent incorrect installation (twisting protection). Emergency light device carrier escape sign type B or C, viewing distance 32 m. Escape sign rotatably mounted and can be locked at 0°, 45° and 90° if required. Green color coding for mounting in VLT-11. Sliding contacts for selecting 2 separate emergency light circuits. Illumination of the escape sign via edge feed with LEDs. Disc of the escape sign made of UV-resistant PMMA.
| Property | Value |
| Housing colour: | Silver |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Type of voltage: | AC |
| Detection range: | 32 m |
| Length: | 500 mm |
| Width: | 67 mm |
| Height/depth: | 271 mm |
| Battery type: | NiCd |
| Rated operating time: | 3 h |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Rated voltage: | 220 to 240 V |
| With remote switch connection: | yes |
| Material of the Cover: | without cover |
| With light source: | yes |
| Switching type: | standby switching |
| Monitoring device: | automatic self-test |
| Material of the housing: | aluminum |
| Type of marking: | one-/two-sided |
| Suitable for type of marking: | acrylic glass plate |
| Function: | escape route marking |
| With pictogram: | yes |
| Suitable for number of lamps: | 1 |
| Number of lamp heads: | 1 |
| Luminaire with limited surface temperature 'D-mark': | no |
