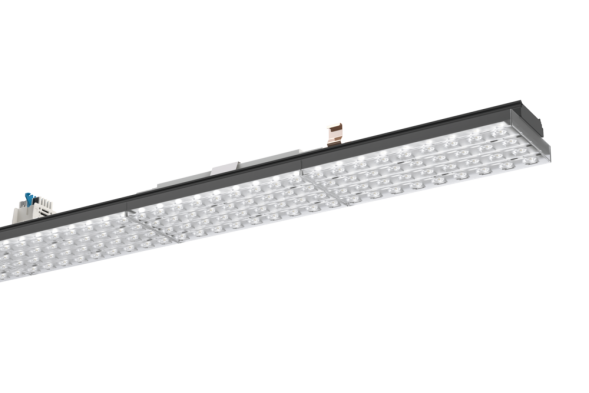

LED device carrier made of aluminum profile, extruded, powder-coated with square, 4-row lens optic arrays for efficient light output. Midpower LED modules for maximum luminaire efficiency. Protection class I, protection type IP20. Spring steel clamp for fastening the device carrier in the VLTM mounting rail. Together with the VLTM mounting rail for the production of modular and variable light strips. The device carriers can be mounted anywhere in the mounting rail. Electrical adapter for flexible tapping of the current supply in the mounting rail with automatically contacted protective conductor. Phase selection via sliding contact. Color and optical coding for easy installation. Mechanical coding to prevent incorrect installation (twisting protection). If the device carriers are variably placed and the operating device meets the mounting rail connector, installation is only possible with the VLTV ...-600 mounting rail connector. An integrated, flexible resistor (ResFlex) can be used to set 10 different resistances and thus 10 different luminous fluxes for the luminaire (factory setting: maximum luminous flux). LED device carrier with blue color coding for installation in VLTM-5, VLTM-7 or VLTM-11. Direct indirect light distribution. Light control directly via optical arrays. Glare control for screen-compatible workplace lighting. Indirect light control via cover, frosted pane made of UV-resistant PMMA.
