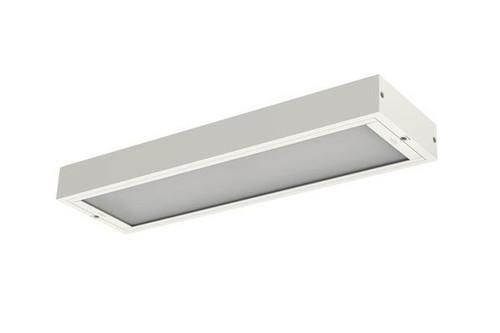

LED surface-mounted luminaire for wall and ceiling mounting, direct beam. Sturdy luminaire housing made of extruded aluminum profile, color white (RAL9016), powder-coated. End caps made of die-cast aluminum. LED modules designed as surface boards. Mid-power LEDs for uniform illumination and maximum efficiency. LED driver built into the luminaire housing. Luminaire suitable for through-wiring. Protection class IP65, protection class II. An integrated, flexible resistor (ResFlex) can be used to set 10 different resistors and thus 10 different luminous fluxes for the luminaire (factory setting: maximum luminous flux). Satin-finished cover made of polycarbonate with a wide-beam, symmetrical prism profile, vandal-proof. Impact resistance IK13. Assembly: surface-mounted by the customer. Seal required for the protection class included.
| Property | Value |
| Max. System power: | 18 W |
| Rated luminous flux according to IEC 62722-2-1: | 2330 lm |
| Suitable for number of lamps: | 2 |
| Length: | 690 mm |
| Width: | 200 mm |
| Height/depth: | 70 mm |
| Protection rating (IP): | IP65 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | aluminum |
| Color temperature: | 3000 K |
| Impact resistance: | > IK10 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | yes |
| Voltage type: | AC/DC |
| With motion detector: | no |
| With light source: | yes |
| Light source: | LED not replaceable |
| With operating device: | yes |
| Cover material: | Plastic, matt/satin |
| Without dimming function: | yes |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | yes |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | yes |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with Push button: | no |
| Dimming depending on operating device: | yes |
| Glow wire test according to IEC 60695-2-11: | 850 °C - 30 s |
| Luminaire luminous efficacy: | 129 lm/W |
