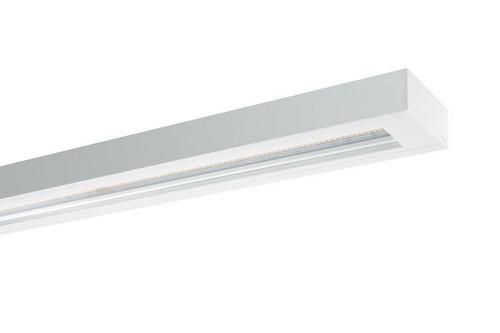

LED surface-mounted luminaire for ceiling or pendant mounting, suitable for strip mounting, direct beam. Sturdy luminaire housing made of sheet steel with a particularly scratch-resistant powder coating. LED modules designed as a surface circuit board. Mid-power LEDs for uniform illumination and maximum efficiency. LED driver built into the luminaire. Welded functional end pieces with patented quick connection for strip mounting. Protection type IP20, protection class I. Optics with asymmetrical beam made from impact-resistant, UV-resistant PMMA extruded. Prism structure on the inside, smooth outside. Installation: individual or strip mounting. Ceiling mounting with the included accessories or pendant mounting with the appropriate fastening sets (see accessories).
| Property | Value |
| Max. System power: | 31 W |
| Rated luminous flux according to IEC 62722-2-1: | 3995 lm |
| Suitable for number of lamps: | 1 |
| Length: | 1180 mm |
| Width: | 131 mm |
| Height/depth: | 60 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | steel |
| Color temperature: | 4000 K |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | no |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | yes |
| Light source: | LED not replaceable |
| With operating device: | yes |
| Without dimming function: | yes |
| Light emission: | direct |
| Light distribution: | asymmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | yes |
| Suitable for pendulum suspension: | yes |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | yes |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Potentiometer dimming (integrated in the device): | no |
| 0-10 V dimming: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming dependent on operating device: | yes |
| Luminaire luminous efficacy: | 128 lm/W |
Features
HAB
ABRFB1180NDWS840LFA0450
Manufacturer
HAN
627731
GTIN
4029299556285
Rated luminous flux according to IEC 62722-2-1
3995lm
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
131 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
4000K
Color rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for number of lamps
1
Suitable for light strip configuration
Yes
Suitable for emergency lighting
Yes
Suitable for pendulum suspension
Yes
Suitable for wall mounting
No
Housing color
White
Height/Depth
60 mm
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
128lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distribution
Asymmetrical
Length
1180 mm
Max. system performance
31 W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
220 to 240 V
Without dimming function
Yes
IP protection)
IP20
Protection class
I
Voltage type
AC
Housing material
Steel
