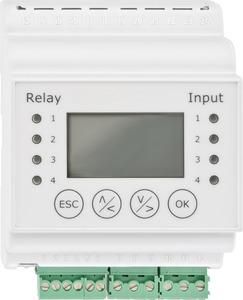

For connecting a fingerprint module RGE18792..: For commissioning and for changes from the sub-distribution. Connection via mini USB interface. Functions: teach in fingers, delete fingers individually, set relay switching time (0-99s), change code, reset, test mode. Management of up to 99 fingers. 1 switching relay, potential-free (max. 2A). Convenient programming via membrane keypad and display directly on the device. Power supply via mains transformer. Installation in standard distributor or AP. For installation on top hat rails in standard distributors according to DIN EN 43870. Machine positions: 4. Power supply: from mains transformer 16477.. Temperature range: 20 degrees C to +70 degrees C. Scope of delivery: assembly and programming instructions. : REG, white.
| Property | Value |
| Installation technology: | system-independent |
| Function: | control/regulate |
| Mounting type: | DIN rail |
| Width in division units: | 4 |
