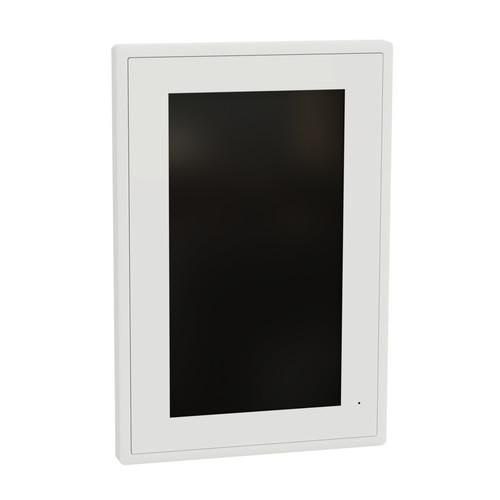

The TwinBus IP indoor station serves as a digital 2-wire video/audio communication unit in the TwinBus IP system. The 7-inch touchscreen with a black front design can be mounted horizontally or vertically. It is wall-mounted in front of a flush-mounted box or alternatively directly on the wall. The corresponding support plates are included in the scope of delivery. The power supply is via the TwinBus IP power supply unit REG (RGE2057100). If up to three additional indoor stations are used, an additional power supply (power supply unit REG) is required. The wiring is done via 2 plug-in, labeled terminal blocks on the back of the device. In addition to HD video and audio communication with the door station, internal calls between up to 3 additional indoor stations (audio only) are possible. The integrated WIFI function allows communication with the TwinBus IP app so that door calls can be received on mobile devices while on the move. An info LED built into the front of the device informs about missed door calls or the activated device mute function.
| Property | Value |
| Installation technology: | 2-wire |
| Color: | white |
| Operation of door opener: | yes |
| With automatic door opener: | no |
| Call differentiation: | yes |
| Switching functions: | no |
| Internal communication: | yes |
| Mounting type: | Flush-mounted |
| Interface design: | LAN |
| Volume control: | yes |
| Function lamps: | yes |
| Call silencing: | yes |
| Additional device can be connected in series: | yes |
| Tap-proof: | no |
| With video: | yes |
| Material: | Plastic |
| Image system: | NTSC |
| With memory function: | yes |
| Hands-free: | no |
| Connection to smartphone possible: | yes |
| Hearing aid compatible: | no |
| With touchscreen: | yes |
| Width: | 197.0 mm |
| Height: | 133.0 mm |
| Depth: | 25.2 mm |
| Image system properties: | Color |
| PTZ function (pan/tilt/zoom): | no |
| Screen diagonal: | 177.8 mm |
| Screen diagonal in inches: | 7.0 inches |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
