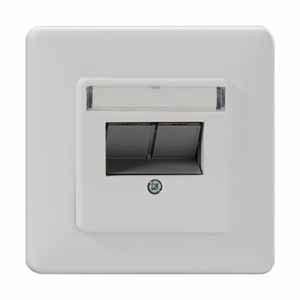

Rutenbeck 139112071 UM-Cat.6A iso 10G-MD 2 Up rw junction box

10 Gigabit modular connection box, shielded, 2-way, flush-mounted, with 2 modules, break-off support ring for bridge version, pure white (similar to RAL 9010), - for use in 10 Gigabit Ethernet networks (transmission bandwidth up to 500 MHz), - RJ45 plug-in openings, - suitable for TAE design covers from the switch industry (Berker, Busch-Jaeger, GIRA, Jung, Merten, etc.), Module properties:, - 10GB universal module, shielded, - for use in 10 Gigabit Ethernet networks (transmission bandwidth up to 500 MHz), - 1 x RJ45 plug-in opening, - suitable for standard keystone openings (14.8 x 19.3 mm), - die-cast zinc design, - nickel-plated housing surface, - 360° strain relief and shielding, - for data cables with 6-10 mm diameter, - solid conductors: IDC terminals for one conductor 0.51 - 0.64 mm Ø, AWG 24-22, outer diameter 0.7-1.6 mm (PE), - flexible conductors: IDC terminals for one conductor 0.13-0.22 mm Ø, AWG 26 (PE-Foamskin), AWG 24 (PE-solid), outer diameter 0.9-1.1 mm (PE), - 1 wire per contact, can be reused 10 times (with the same or larger cross-section), - bending radius-optimized feed of the connecting cables (30°), - defined earth connection possible using standard flat plug connectors, - assembly without special pliers/tools, - integrated dust protection cap (removable/replaceable if required), - color code T568A and T568B in accordance with TIA/EIA-568-B.2, - suitable for PoE++ / 4PPoE according to IEEE 802.3bt, - UPOE compliant, - HDBaseT compliant, - with angled/straight mounting adapter, - in accordance with the following standard requirements:, - ISO/IEC 11801, Cat.6A, shielded, - DIN EN 50173-1, Cat.6A, shielded, - ANSI TIA/EIA-568-C.2 Category 6A, - DIN EN 60 603-7-51, 500 MHz, shielded, - service life > 750 mating cycles, - RJ11/12 mismating protected, - GHMT counter-certified
