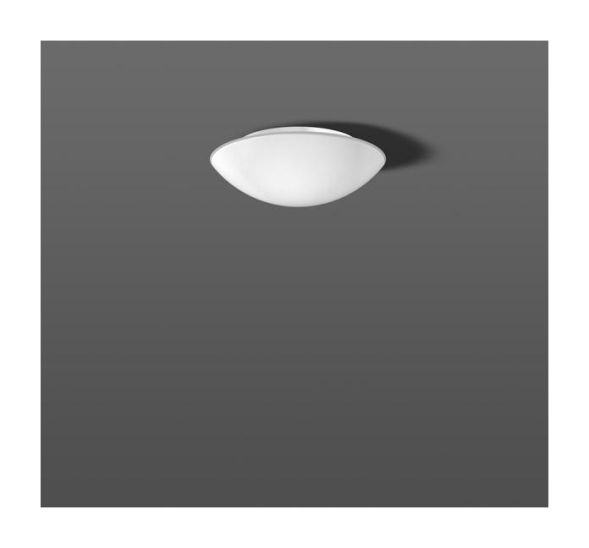

Very extensive range of ceiling and wall lights for indoor use. Hand-blown three-layer opal glass (triplex glass), satin matt. The triplex glass ensures particularly homogeneous, soft and glare-free light. In numerous diameters from 200 to 630 mm. Slave light (SL). Plastic bracket. Cover attached using a spring system. Cover made of opal glass, satin matt, hand-blown. IP43 ceiling mounting, IP44 wall mounting. Energy efficiency class A+, A+A+
| Property | Value |
| Max. System power: | 13 W |
| Rated luminous flux according to IEC 62722-2-1: | 1150 lm |
| Suitable for number of lamps: | 1 |
| Height/depth: | 118 mm |
| Protection rating (IP): | IP43 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | plastic |
| Color temperature: | 4000 K |
| Impact resistance: | IK02 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | yes |
| Outer diameter: | 370 mm |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | extremely wide beam >80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | no |
| Cover material: | opal glass |
| Light distributor: | without |
| Without dimming function: | yes |
| Light emission: | direct/indirect |
| Light distribution: | symmetrical |
| With Light sensor: | no |
| Operating device: | not required |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Suitable for light strip configuration: | no |
| Suitable for pendulum suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Covering the lamp with thermal insulation material possible: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming Potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming dependent on operating device: | no |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 960 °C - 30 s |
| Suitable for lamp power: | 13 W |
| Luminaire luminous efficacy: | 89 lm/W |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 2 |
| Conductor cross-section: | 2.50 mm² |
Features
HAB
Flat Basic 13,5W 4000K D370 H118,Slave
Manufacturer
HAN
211399.002.1.191
GTIN
4051859183044
Covering the luminaire with thermal insulation material possible
Yes
Connection type
Plug-in terminal
Type of wiring
Suitable for through wiring
Outer diameter
370 mm
Rated luminous flux according to IEC 62722-2-1
1150lm
Rated ambient temperature according to IEC62722-2-1
25°C
Operating device
Not required
Suitable for computer workstations according to EN 12464-1
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
4000K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for lamp power
13 W
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Suitable for wall mounting
Yes
Housing color
White
Glow wire test according to IEC 60695-2-11
960 °C - 30 s
Height/Depth
118 mm
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
89lm/W
Lamps
LED not replaceable
Light emission
Direct/indirect
Light color
White
Light distributor
Without
Light distribution
Symmetrical
Max. system performance
13 W
With operating device
No
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
220 to 240 V
Without dimming function
Yes
Number of poles
2
Impact resistance
IK02
IP protection)
IP43
Protection class (NEMA)
Other
Protection class
I
Voltage type
AC
Cover material
Glass opal
Housing material
Plastic
