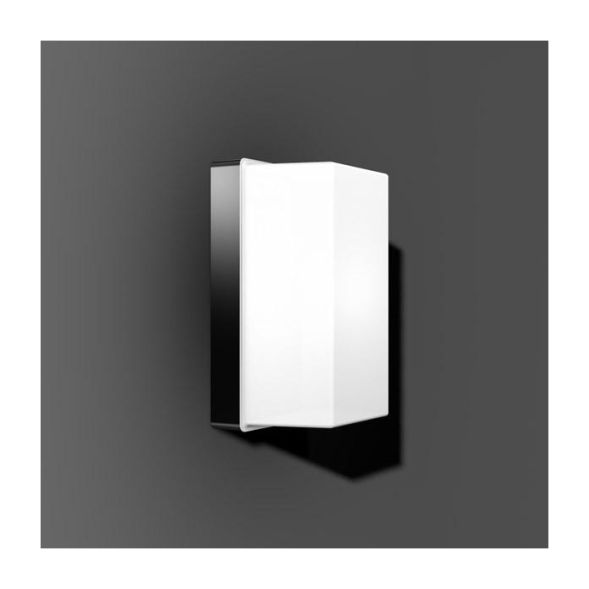

Rectangular surface-mounted light in a classic design. Plastic fitting. Opal plastic diffuser, satin finish. Diffuser attached with a spring system. Suitable for wall mounting.
| Property | Value |
| Max. System power: | 17 W |
| Suitable for number of bulbs: | 1 |
| Length: | 215 mm |
| Width: | 115 mm |
| Height/depth: | 110 mm |
| Protection rating (IP): | IP44 |
| Protection class: | II |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 230 V |
| Housing color: | black |
| Housing material: | plastic |
| Impact resistance: | IK06 |
| Suitable for ceiling mounting: | no |
| Suitable for wall mounting: | yes |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | extremely wide beam >80° |
| Light source: | Incandescent lamp |
| Rated ambient temperature according to IEC62722-2-1: | -25 to 25 °C |
| Socket: | E27 |
| Connection type: | Screw terminal |
| With operating device: | no |
| Cover material: | Opal plastic |
| Light distributor: | without |
| Without dimming function: | yes |
| Light output: | direct/indirect |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | not required |
| Suitable for recessed mounting: | no |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | no |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Suitable for lamp power: | 17 W |
| Power factor: | 1 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 2 |
| Conductor cross-section: | 1.50 mm² |
Features
HAB
Rectangle A60 60W E27 215x115x110
Manufacturer
HAN
22144.003
GTIN
4010319017916
Covering the luminaire with thermal insulation material possible
Yes
Connection type
Screw terminal
Type of wiring
Suitable for through wiring
Execution of the grid
Without
Rated ambient temperature according to IEC62722-2-1
-25 to 25 °C
Operating device
Not required
Suitable for computer workstations according to EN 12464-1
Yes
Width
115 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Version
E27
Suitable for surface mounting
Yes
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for lamp power
17 W
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Suitable for wall mounting
Yes
Housing color
Black
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
110 mm
Power factor
1
Conductor cross-section
1.50 mm²
Luminaire with limited surface temperature D-mark
No
Lamps
Light bulb
Light emission
Direct/indirect
Light distributor
Without
Light distribution
Symmetrical
Length
215 mm
Max. system performance
17 W
With operating device
No
With motion detector
No
With light sensor
No
With air slots
No
Nominal voltage
230V
Without dimming function
Yes
Number of poles
2
Impact resistance
IK06
IP protection)
IP44
Protection class (NEMA)
Other
Protection class
II
Voltage type
AC
Cover material
Plastic opal
Housing material
Plastic
