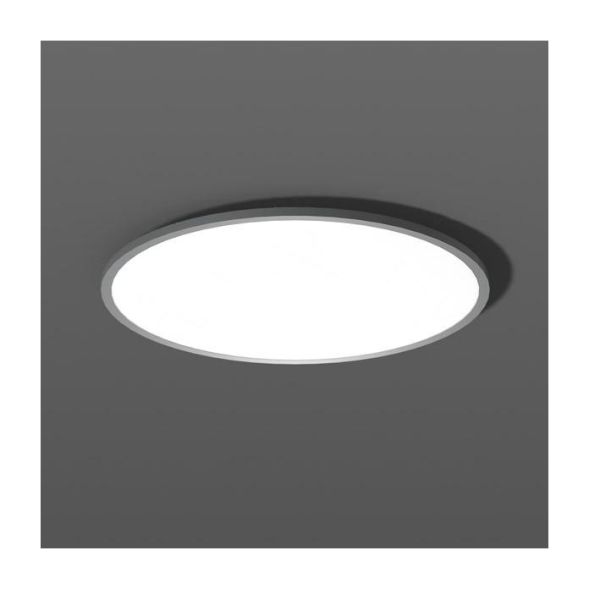

Extensive series consisting of: pendant lights, ceiling and wall lights. Side light coupling with LED. Implementation of the latest LED technology in a minimalist design. An anodized aluminum extruded profile that is only 15 mm flat holds the diffuser. Excellently suited for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Light guide and diffuser made of non-yellowing PMMA. Color tolerance: 3-fold MacAdam (3 SDCM). LED service life 50,000 h (L70, B10). Tunable White versions dynamically adjustable from 2700 K to 6500 K. Versions with smart+free Bluetooth control for wireless networking and operation using an Android / iOS device, free app available for download. Cover painted aluminum. Frame anodized aluminum. Diffuser made of plastic (PMMA), opal / microprismatic. Control gear built in. Lateral light coupling with LED. Light source (LED) included in delivery. With smart+free Bluetooth control module for wireless networking and operation of lights. Energy efficiency class A++
| Property | Value |
| Max. System power: | 29 W |
| Rated luminous flux according to IEC 62722-2-1: | 3450 lm |
| Suitable for number of lamps: | 1 |
| Height/depth: | 50 mm |
| Protection rating (IP): | IP40 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | Aluminum |
| Housing material: | Aluminum |
| Color temperature: | 3000 K |
| Impact resistance: | IK03 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | yes |
| Outer diameter: | 675 mm |
| Voltage type: | AC/DC |
| With motion detector: | no |
| Beam angle: | extremely wide beam >80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Cover material: | plastic opal |
| Light distributor: | other |
| Without dimming function: | no |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With Light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Suitable for light strip configuration: | no |
| Suitable for pendulum suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Covering of the lamp with thermal insulation material possible: | yes |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Potentiometer dimming (device integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | yes |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase control: | no |
| Dimming phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming dependent from the operating device: | yes |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Suitable for lamp power: | 29 W |
| Luminaire luminous efficacy: | 119 lm/W |
| Power factor: | 0.95 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 3 |
| Conductor cross section: | 2.50 mm² |
Features
HAB
Sidelite Round 31W 3000K D675 H50 s+f
Manufacturer
HAN
311849.000.730
GTIN
4051859258575
Covering the luminaire with thermal insulation material possible
Yes
Connection type
Plug-in terminal
Type of wiring
Suitable for through wiring
Execution of the grid
Without
Outer diameter
675 mm
Rated luminous flux according to IEC 62722-2-1
3450lm
Rated ambient temperature according to IEC62722-2-1
25°C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
Yes
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for lamp power
29 W
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Suitable for wall mounting
Yes
Housing color
Aluminum
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
50 mm
Power factor
0.95
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
119lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distributor
Other
Light distribution
Symmetrical
Max. system performance
29 W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
220 to 240 V
Without dimming function
No
Number of poles
3
Impact resistance
IK03
IP protection)
IP40
Protection class (NEMA)
Other
Protection class
I
Voltage type
AC/DC
Cover material
Plastic opal
Housing material
Aluminum
