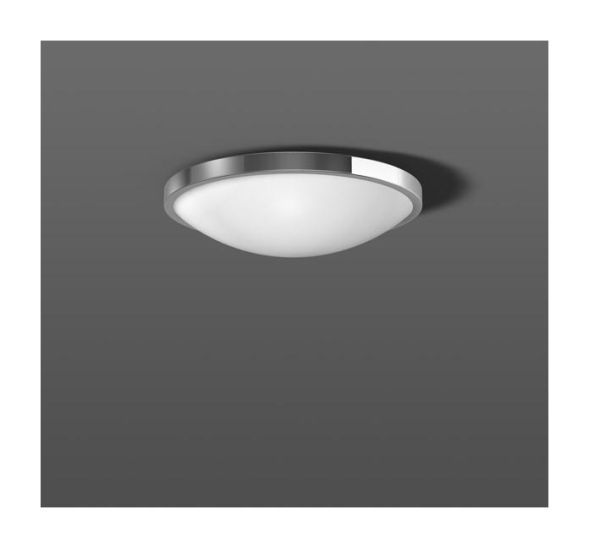

Decorative round surface-mounted light with decorative ring. Metal fitting painted white. Glass curved, opal matt. Decorative ring metal. Glass and decorative ring fastening with spring system. Suitable for ceiling mounting, wall mounting.
| Property | Value |
| Max. System power: | 10 W |
| Rated luminous flux according to IEC 62722-2-1: | 680 lm |
| Suitable for number of lamps: | 4 |
| Height/depth: | 87 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | Chrome |
| Housing material: | Steel |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Suitable for wall mounting: | yes |
| Outer diameter: | 310 mm |
| Voltage type: | AC/DC |
| With motion detector: | no |
| Beam angle: | extremely wide beam >80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -10 to 30 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Cover material: | opal glass |
| Light distributor: | without |
| Without dimming function: | yes |
| Light emission: | direct/indirect |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendulum suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | yes |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | yes |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with Push-button: | no |
| Dimming depending on operating device: | no |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 960 °C - 30 s |
| Suitable for lamp power: | 10 W |
| Luminaire luminous efficacy: | 68 lm/W |
| Power factor: | 0.55 |
| Type of Wiring: | Termination |
| Number of poles: | 3 |
| Conductor cross-section: | 2.50 mm² |
Features
HAB
4x2.2W 3000K D310 H87 chrome
Manufacturer
HAN
311879.0044
GTIN
4051859077398
Covering the luminaire with thermal insulation material possible
Yes
Connection type
Plug-in terminal
Type of wiring
Diploma
Execution of the grid
Without
Outer diameter
310 mm
Rated lifetime L80/B10 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
680lm
Rated ambient temperature according to IEC62722-2-1
-10 to 30 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for lamp power
10W
Suitable for number of lamps
4
Suitable for light strip configuration
No
Suitable for emergency lighting
Yes
Suitable for pendulum suspension
No
Suitable for wall mounting
Yes
Housing color
Chrome
Glow wire test according to IEC 60695-2-11
960 °C - 30 s
Height/Depth
87 mm
Power factor
0.55
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
68lm/W
Lamps
LED not replaceable
Light emission
Direct/indirect
Light color
White
Light distributor
Without
Light distribution
Symmetrical
Max. system performance
10W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
220 to 240 V
Without dimming function
Yes
Number of poles
3
IP protection)
IP20
Protection class (NEMA)
Other
Protection class
I
Voltage type
AC/DC
Cover material
Glass opal
Housing material
Steel
