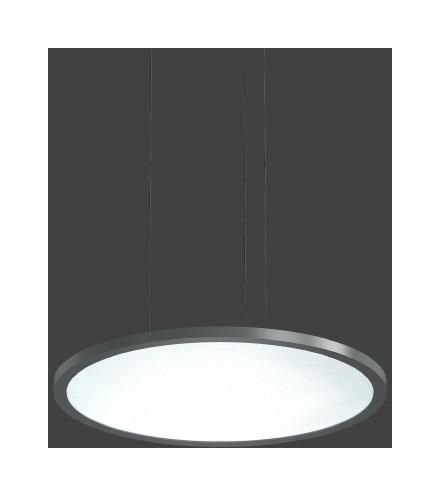

Extensive series consisting of: pendant lights, ceiling and wall lights. Lateral light coupling with LED. An anodized aluminum extruded profile that is only 15 mm flat holds the diffuser. Excellent for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Light guide and diffuser made of non-yellowing PMMA plastic. Color tolerance: 3-fold MacAdam (3 SDCM). LED service life 50,000 h (L70, B10). Tunable White versions dynamically adjustable from 2700 K to 6500 K. Versions with smart+free Bluetooth control for wireless networking and operation using an Android / iOS device, free app available for download. Ceiling canopy (D 263 mm, H 40 mm) anodized aluminum. With 3-point steel cable suspension, continuously height adjustable. Cover: painted aluminum. Frame: anodized aluminum. Diffuser: plastic (PMMA), opal/microprismatic. Built-in control gear. Lateral light coupling with LED. Light source (LED) included in delivery. Energy efficiency class: A++
| Property | Value |
| Max. System power: | 23 W |
| Rated luminous flux according to IEC 62722-2-1: | 2800 lm |
| Color temperature: | 4000 K |
| Diameter: | 457 mm |
| Socket: | without |
| Suitable for number of bulbs: | 1 |
| Height/depth: | 15 mm |
| Protection class (IP): | IP40 |
| Protection class: | I |
| Pendant length: | 500 to 1200 mm |
| Operating device: | LED operating device, current-controlled |
| Housing material: | Aluminum |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| With light source: | yes |
| With operating device: | yes |
| Nominal voltage: | 230 V |
| Suspension included: | yes |
| Cover material: | structured plastic |
| Light source: | LED not replaceable |
| Housing color: | aluminum |
| Grid design: | without |
| Reflector: | without |
| Suitable for strip light configuration: | no |
| Direct/indirect components separately adjustable: | no |
| Light distribution: | symmetrical |
| Light emission: | direct |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Color rendering index CRI: | 80-89 |
| Suitable for emergency lighting: | yes |
| Light color: | white |
| Voltage type: | AC/DC |
| LED nominal current at constant current: | 100 mA |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming programmable: | no |
| Dimming DSI: | no |
| Dimming RF: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming Trailing edge: | no |
| Dimming leading edge: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | other |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Suitable for lamp power: | 23 W |
| Power factor: | 0.95 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 3 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug-in terminal |
