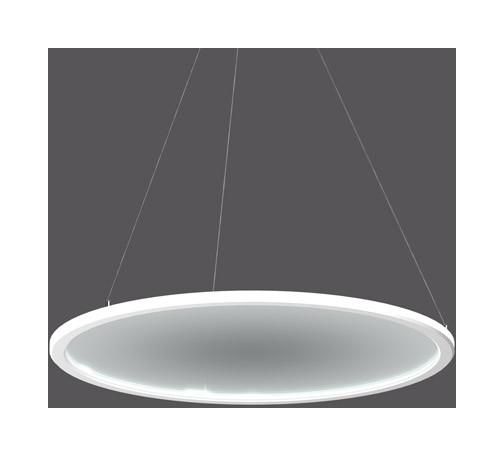

Transparent and opal design. Highly economical luminaire series with progressive LED technology, consisting of ceiling, wall and pendant luminaires for indoor use. Excellently suited for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Light guide and diffuser made of non-yellowing PMMA with fine microprismatics. RZB SIDELITE technology: Lateral light coupling for above-average homogeneous luminance distribution. LED service life 50,000 h (L70, B10). Extremely low installation height (15 mm). Very simple converter installation using a twist-and-plug system. Ceiling canopy (D 202 mm, H 56 mm) metal, powder-coated. Control gear built into the ceiling canopy. With 3-point steel cable suspension, infinitely height-adjustable. Frame made of powder-coated aluminum. Diffuser made of clear plastic (PMMA). Diffuser and light guide made of non-yellowing plastic (PMMA). Lateral light coupling with LED. Light output direct 50% / indirect 50%. Light source (LED) included in delivery. Pendant set including ceiling canopy included in delivery. Energy efficiency class A+
| Property | Value |
| Max. System power: | 39 W |
| Rated luminous flux according to IEC 62722-2-1: | 3550 lm |
| Color temperature: | 4000 K |
| Diameter: | 580 mm |
| Socket: | without |
| Suitable for number of bulbs: | 1 |
| Height/depth: | 15 mm |
| Protection class (IP): | IP40 |
| Protection class: | II |
| Pendant length: | 300 to 1500 mm |
| Operating device: | LED operating device, current-controlled |
| Housing material: | Aluminum |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| With light source: | yes |
| With operating device: | yes |
| Nominal voltage: | 220 to 240 V |
| Suspension included: | yes |
| Cover material: | transparent plastic |
| Light source: | LED not replaceable |
| Housing color: | white |
| Grid design: | without |
| Reflector: | without |
| Suitable for strip light configuration: | no |
| Direct/indirect components separately adjustable: | no |
| Light distribution: | symmetrical |
| Light emission: | direct/indirect |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Color rendering index CRI: | 80-89 |
| Suitable for emergency lighting: | no |
| Light color: | white |
| Voltage type: | AC/DC |
| LED nominal current at constant current: | 162 to 177 mA |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming programmable: | no |
| Dimming DSI: | no |
| Dimming RF: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Without dimming function: | no |
| Light distributor: | without |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Suitable for lamp power: | 39 W |
| Power factor: | 0.95 |
| Type of wiring: | Termination |
| Number of poles: | 4 |
| Conductor cross-section: | 1.50 mm² |
| Connection type: | Plug-in terminal |
