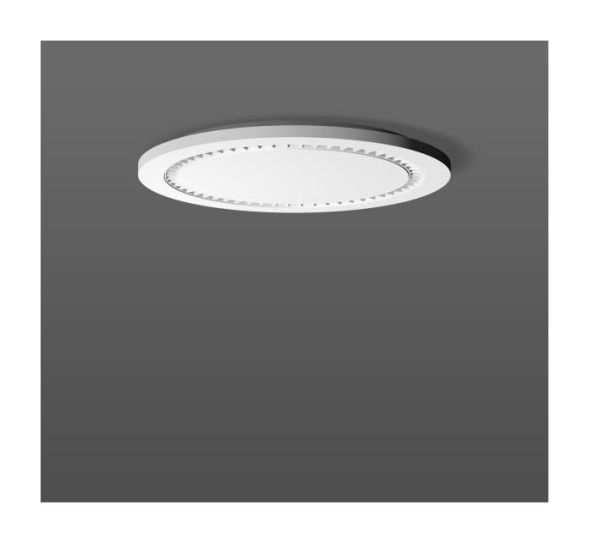

Glare-free LED ceiling light with lens optics. Compact, slim design, total height less than 33 mm. Easy to set up via plug and play connector. Generous cable connection space, ideal for looping through. Sealing tape on the back of the light connects seamlessly to the surface. Thanks to UGR < 22, ideal for corridors, stairwells, shops, schools, meeting rooms, break rooms. Up to 70% energy savings compared to conventional fittings. Efficiency up to 125 lm/W. LED service life 50,000 h (L70, B10). Color rendering Ra > 80. Powder-coated metal bracket. With bayonet fastening. Plastic housing (polycarbonate). Diffuser with lens optics. Housing and diffuser screwed together. Energy efficiency class A++
| Property | Value |
| Max. System power: | 25 W |
| Rated luminous flux according to IEC 62722-2-1: | 3000 lm |
| Suitable for number of lamps: | 1 |
| Height/depth: | 33 mm |
| Protection rating (IP): | IP40 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Material of the Housing: | Aluminum |
| Color temperature: | 4000 K |
| Impact resistance: | IK06 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 40000 h |
| Suitable for wall mounting: | no |
| Outer diameter: | 400 mm |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | wide beam 41-80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 40 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With control gear: | yes |
| Cover material: | transparent plastic |
| Light distributor: | without |
| without Dimming function: | yes |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on operating device: | no |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 850 °C - 30 s |
| Suitable for lamp power: | 25 W |
| Luminaire luminous efficacy: | 120 lm/W |
| Power factor: | 0.97 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 2 |
| Conductor cross-section: | 4 mm² |
Features
HAB
Hemis round 25W 4000K D400 H33
Manufacturer
HAN
312186.002.1
GTIN
4051859223771
Covering the luminaire with thermal insulation material possible
Yes
Connection type
Plug-in terminal
Type of wiring
Suitable for through wiring
Execution of the grid
Without
Beam angle
Wide beam 41-80°
Outer diameter
400 mm
Rated lifetime L80/B10 at 25 °C
40000 hours
Rated luminous flux according to IEC 62722-2-1
3000lm
Rated ambient temperature according to IEC62722-2-1
-20 to 40 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for lamp power
25W
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Suitable for wall mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
850 °C - 30 s
Height/Depth
33 mm
Power factor
0.97
Conductor cross-section
4 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
120lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distributor
Without
Light distribution
Symmetrical
Max. system performance
25W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
Without dimming function
Yes
Number of poles
2
Impact resistance
IK06
IP protection)
IP40
Protection class (NEMA)
Other
Protection class
I
Voltage type
Cover material
Plastic transparent
Housing material
Aluminum
