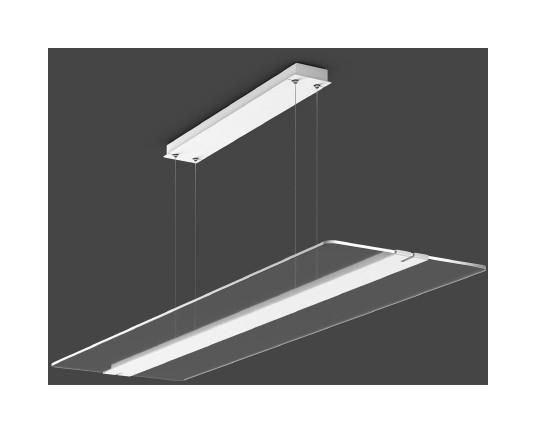

Innovative, perfectly glare-free TWINDOT prismatics. Evenly wide light distribution, indirect and direct. Pleasantly soft light with soft shadows. smart+free Bluetooth control or daylight, and presence sensor optional. Variants for Tunable White available. Excellently suited for office areas (UGR 19) and computer workstations (BAP) in accordance with DINEN 12464-1. Light strips can be configured. Luminaire luminous efficacy up to 130 lm/W. Light output 6,500 lm for format 1,200 mm and 8,100 lm for format 1,500 mm, direct/indirect distribution 55/45. LED service life 60,000 hours L100 CLO controlled for consistent light output over the entire service life. Bluetooth control for wireless networking and operation via Android / iOS device, free app available for download. TwinDOT S, extremely flat and frameless appearance (6 mm). Luminaire center bar made of extruded aluminum profile, powder-coated. Transparent light guide made of non-yellowing plastic (PMMA). Light control through TWINDOT technology. UGR < 19 (screen-compatible according to EN-12464-1). Light color 4000 K. Converter (dimmable) integrated in the canopy (powder-coated white). Power supply via cable pendulum. 4-point steel cable suspension, infinitely height-adjustable. Integrated smart+free Bluetooth control., New, perfectly glare-free TWINDOT prismatics, Evenly wide light distribution indirect and direct, Pleasantly soft light with soft shadows, smart+free Bluetooth control or daylight, and presence sensor optional, Variant for Tunable White available, Double light and light strip can be configured, Limitation to 3,000 cd/m > 65°, Excellent for office areas (UGR < 19) and computer workstations (BAP) in accordance with DIN EN 12464-1, Luminaire luminous efficacy up to 130 lm/W, Light output 6,500 lm for format 1,200 and 8,100 lm for format 1,500, Distribution direct/indirect 55/45, Color rendering Ra > 80, Ra > 90 on request, LED service life 60,000 hours L100 CLO controlled
| Property | Value |
| Max. System power: | 54 W |
| Rated luminous flux according to IEC 62722-2-1: | 6500 lm |
| Color temperature: | 4000 K |
| Length: | 1200 mm |
| Width: | 350 mm |
| Socket: | without |
| Suitable for number of bulbs: | 1 |
| Height/depth: | 20 mm |
| Protection type (IP): | IP20 |
| Protection class: | I |
| Pendant length: | 500 to 1200 mm |
| Operating device: | LED operating device, current-controlled |
| Housing material: | Aluminum |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| With light source: | yes |
| With Operating device: | yes |
| Nominal voltage: | 220 to 240 V |
| Suspension included: | yes |
| Cover material: | transparent plastic |
| Light source: | LED not replaceable |
| Housing color: | white |
| Design of the grid: | without |
| Reflector: | without |
| Suitable for light strip configuration: | no |
| Direct/indirect components separately adjustable: | no |
| Light distribution: | symmetrical |
| Light emission: | direct/indirect |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Color rendering index CRI: | 80-89 |
| Suitable for Emergency light: | no |
| Light color: | white |
| Voltage type: | AC |
| LED nominal current at constant current: | 225 to 245 mA |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming programmable: | no |
| Dimming DSI: | no |
| Dimming RF: | no |
| Dimming potentiometer (device integrated): | no|
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | yes |
| Dimming Mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Rated service life L80/B10 at 25 °C: | 60000 h |
| Without dimming function: | no |
| Light distributor: | without |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Suitable for lamp power: | 54 W |
| Power factor: | 0.95 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 3 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug-in terminal |
