Improved efficiency, up to 130 lm/W. Integrated control gear. Optimized design. Replaceable and removable LED unit. LED service life 50,000 h (L80, B10). Diffuser made of non-yellowing plastic (PMMA), opal or Alea Optik System. Deep beam design. Alea Optik System ideally suited for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Color tolerance: triple MacAdam (3 SDCM). Housing: powder-coated extruded aluminum profile. End caps: powder-coated aluminum. Diffuser made of non-yellowing plastic (PMMA), opal. Replaceable and removable LED unit with integrated control gear. Energy efficiency class A++
| Property | Value |
| Max. System power: | 47 W |
| Rated luminous flux according to IEC 62722-2-1: | 5400 lm |
| Suitable for number of lamps: | 7 |
| Length: | 1981 mm |
| Width: | 71 mm |
| Height/depth: | 1.50 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | aluminum |
| Color temperature: | 3000 K |
| Impact resistance: | IK03 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Suitable for wall mounting: | yes |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | extremely wide beam >80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 30 °C |
| Socket: | other |
| Connection type: | Plug-in terminal |
| With operating device: | yes |
| Cover material: | Opal plastic |
| Light distributor: | without |
| Installation height/depth: | 100 mm |
| Without dimming function: | yes |
| Installation width: | 60 mm |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed installation: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | no |
| Installation length: | 1968 mm |
| Design of the grid: | without |
| Cover of the luminaire with Thermal insulation material possible: | yes |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Potentiometer dimming (integrated in the device): | no |
| 0-10 V dimming: | no |
| GPRS dimming: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | no |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Suitable for lamp power: | 47 W |
| Luminaire luminous efficacy: | 115 lm/W |
| Power factor: | 0.90 |
| Type of wiring: | Termination |
| Number of poles: | 3 |
| Conductor cross-section: | 1.50 mm² |
Features
HAB

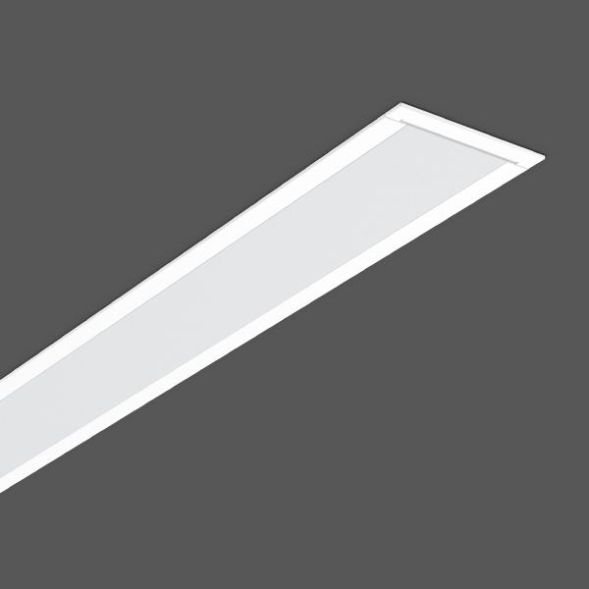

Less is more 50 47W 3000K
Manufacturer
HAN
312327.002
GTIN
4051859281641
Covering the luminaire with thermal insulation material possible
Yes
Connection type
Plug-in terminal
Type of wiring
Diploma
Execution of the grid
Without
Rated lifetime L80/B10 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
5400lm
Rated ambient temperature according to IEC62722-2-1
-20 to 30 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
71 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation width
60 mm
Installation height/depth
100 mm
Installation length
1968 mm
Color temperature
3000K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for lamp power
47W
Suitable for number of lamps
7
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Suitable for wall mounting
Yes
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
1.50 mm
Power factor
0.90
Conductor cross-section
1.50 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
115lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distributor
Without
Light distribution
Symmetrical
Length
1981 mm
Max. system performance
47W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
220 to 240 V
Without dimming function
Yes
Number of poles
3
Impact resistance
IK03
IP protection)
IP20
Protection class (NEMA)
Other
Protection class
I
Voltage type
AC
Cover material
Plastic opal
Housing material
Aluminum
