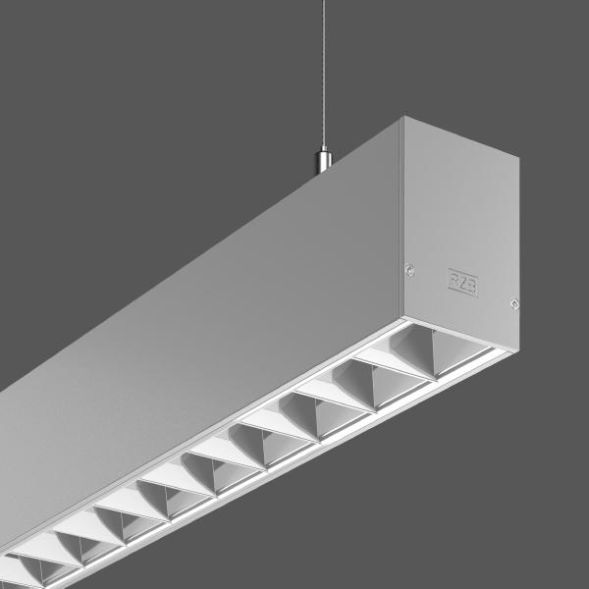

Improved efficiency, up to 130 lm/W. Integrated control gear. Optimized design. Replaceable and removable LED unit. LED service life 50,000 h (L80, B10). Diffuser made of non-yellowing plastic (PMMA), opal or Alea Optik System. Low-beam design. Alea Optik System is ideal for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Color tolerance: triple MacAdam (3 SDCM). Housing: powder-coated extruded aluminum profile. End caps: powder-coated aluminum. Alea Optik System: reflector structure (ABS, aluminum vapor-deposited, high-gloss) with diffuser made of non-yellowing plastic (PMMA), opal for glare-free light in the workplace (UGR < 19, suitable for computer workstations in accordance with DIN EN 12464-1). Steel cable suspension can be freely positioned and continuously adjustable in height (special lengths on request). Replaceable and removable LED unit with integrated operating device. 2-point steel cable suspension can be freely positioned and continuously adjustable in height (special lengths on request). Canopy made of powder-coated aluminum. Light output direct 65% / indirect 35%. Energy efficiency class A+
| Property | Value |
| Max. System power: | 76 W |
| Rated luminous flux according to IEC 62722-2-1: | 9250 lm |
| Color temperature: | 4000 K |
| Length: | 1967 mm |
| Width: | 57 mm |
| Socket: | without |
| Suitable for number of bulbs: | 7 |
| Height/depth: | 75 mm |
| Protection type (IP): | IP20 |
| Protection class: | I |
| Pendant length: | 2000 mm |
| Operating device: | LED operating device, current-controlled |
| Material of the housing: | Aluminium |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| With light source: | yes |
| With Operating device: | yes |
| Nominal voltage: | 220 to 240 V |
| Suspension included: | yes |
| Light source: | LED not replaceable |
| Housing color: | aluminum |
| Design of the grid: | without |
| Reflector: | high-gloss |
| Suitable for light strip configuration: | no |
| Direct/indirect components separately adjustable: | no |
| Light distribution: | symmetrical |
| Light emission: | direct/indirect |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Color rendering index CRI: | 80-89 |
| Suitable for emergency lighting: | no |
| Light color: | white |
| Voltage type: | AC |
| LED nominal current at constant current: | 317 to 345 mA |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming programmable: | no |
| Dimming DSI: | no |
| Dimming RF: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Without dimming function: | yes |
| Light distributor: | Reflector |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Suitable for lamp power: | 76 W |
| Power factor: | 0.98 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 3 |
| Conductor cross-section: | 1.50 mm² |
| Connection type: | Plug-in terminal |
